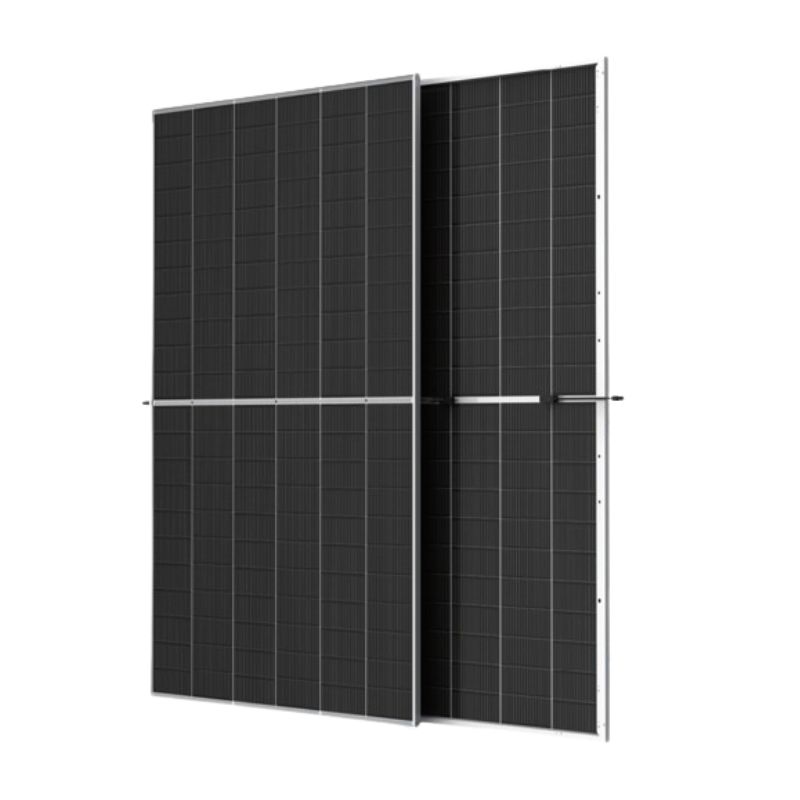

Trina 710w-Solar Module with dual Glass
₨ 24,140
High customer value PRODUCT:
- The star of LCOE (Levelized Cost Of Energy) .Higher string power feature e effectively reduces BOS (Balance of System)and LCOE
- More energy harvest with cutting-edge N-type i-TOPCon technology
- Designed for compatibility with existing mainstream system components
High power up to 710W:
- Up to 22.9% module efficiency with high density interconnect technology
- SMBB (Super multi-busbar) technology for better light trapping etc, lower series resistance and improved current collection.
Warranty:
| Product Warranty | 12 Years (Workmanship) |
| Power Warranty | 30 Years |
Share on facebook
Facebook
Share on twitter
X
Share on pinterest
Pinterest
Share on whatsapp
WhatsApp
Specification |
Details |
|---|---|
| Model | Trina N Type Bi 710W |
| Solar Cells | N-type Monocrystalline |
| Number of Cells | 132 cells |
| Module Dimensions | 2384×1303×33 mm (93.86×51.30×1.30 inches) |
| Weight | 38.3 kg (84.4 lb) |
| Encapsulant Material | POE/EVA |
| Frame | 33mm (1.30 inches) Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Peak Power (Pmax) | 710 W |
| Maximum Power Voltage (VMPP) | 40.9 V |
| Maximum Power Current (IMPP) | 17.36 A |
| Open Circuit Voltage (VOC) | 49.0 V |
| Short Circuit Current (ISC) | 18.40 A |
| Module Efficiency | 22.9% |
High reliability:
- Minimized micro-cracks with innovative non-destructive cutting technology
- Ensured PID resistance through cell process and module material control • Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas
- Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
High energy yield:
- Excellent product bifaciality and low irradiation performance, validated by 3rd party
- Lower degradation：1% first year，0.4% annually thereafter • Lower temperature coefficient (-0.29%/°C)
- Up to 30% additional power gain from back side depending on albedo.
