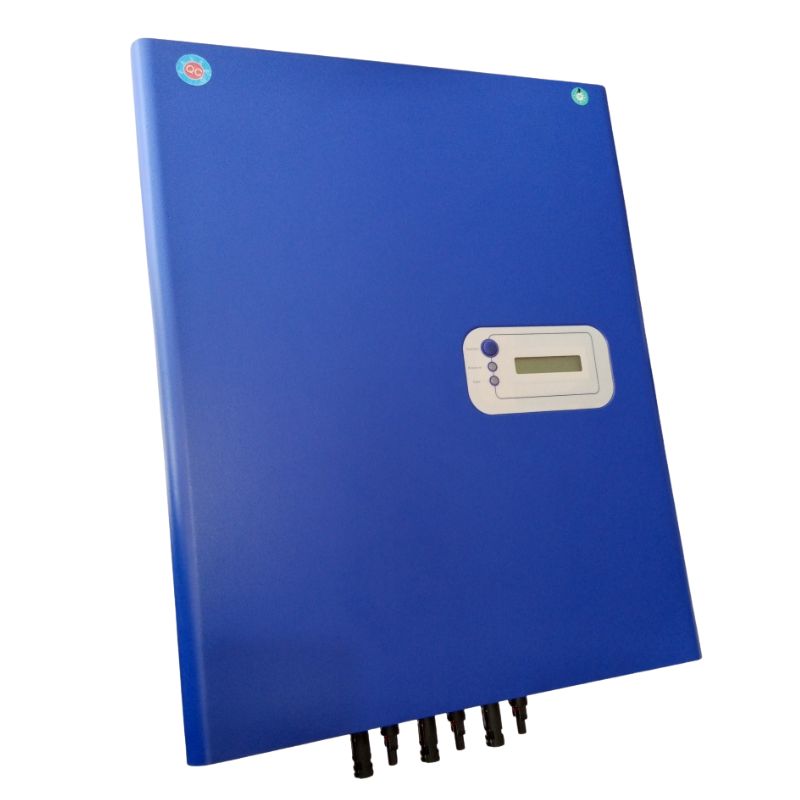

Sunville 4.6kw Inverter
₨ 130,000
Sunville 4.6kW Inverter with transformerless design, 96% efficiency, IP65 protection, and wide DC voltage range.
The Sunville 4.6kW Inverter (Model 6000x) is engineered for efficient and reliable solar power conversion in residential and commercial systems. With a PV capacity of 5000W, wide operating voltage range (100V ~ 750V), and a peak efficiency of 96%, this inverter ensures optimized solar performance.
Its transformerless and fanless design improves durability and reduces maintenance, while IP65 protection guarantees long-lasting outdoor installation. The RS232 communication interface (with optional RS485) and LCD display allow for easy system monitoring and management.
Compatible with modern residential and commercial solar panel systems, the Sunville 6000x is ideal for those seeking reliability and cost-effective power generation.
Key Features:
-
Transformerless, high-efficiency design
-
Grid monitoring according to VDE 0126-1-1
-

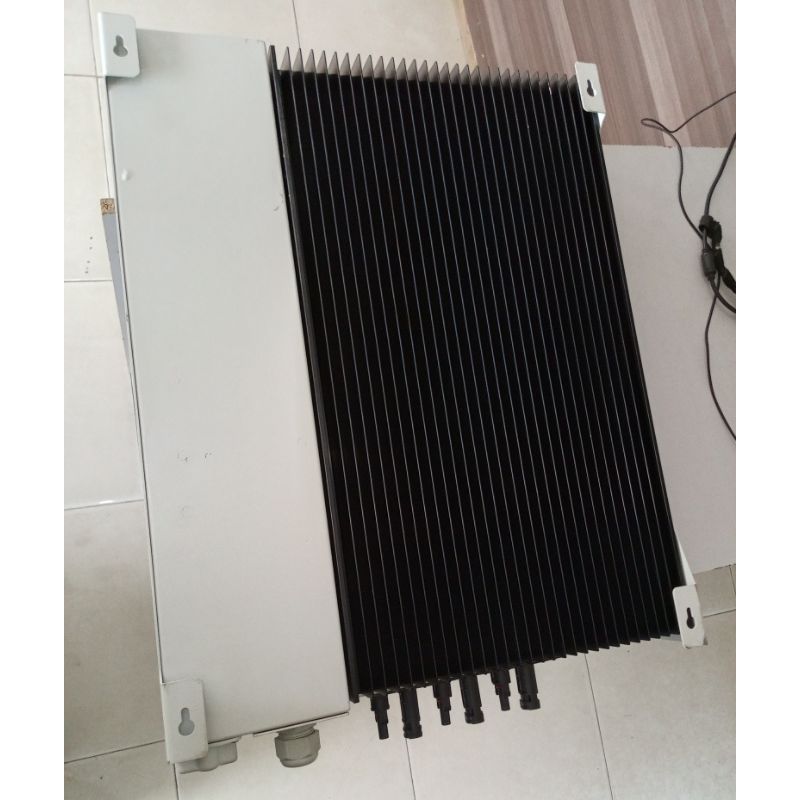

Compact metal casing with fanless cooling
-
Enhanced DC input voltage range
-
Internal GFCI (30mA) for safety
-
Reliable IP65 dust and water resistance
-

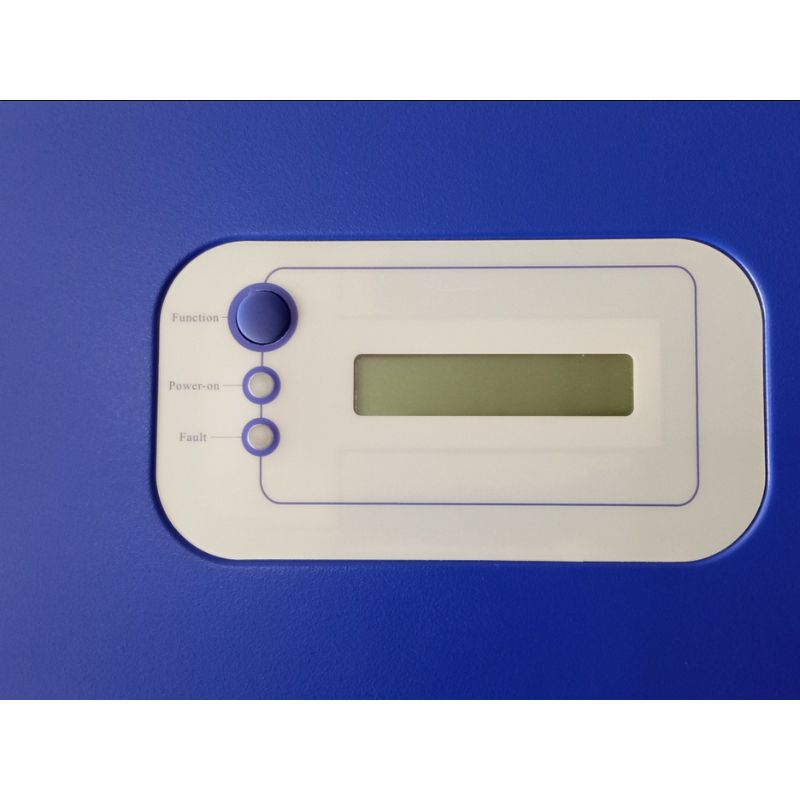

LCD display for real-time monitoring
-

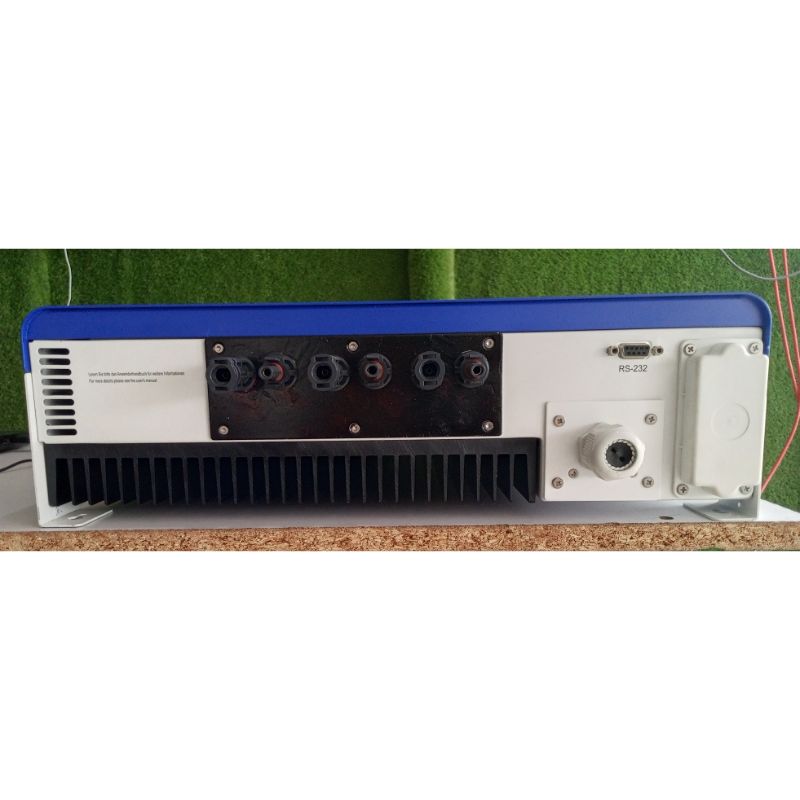

Communication via RS232 (RS485 optional)

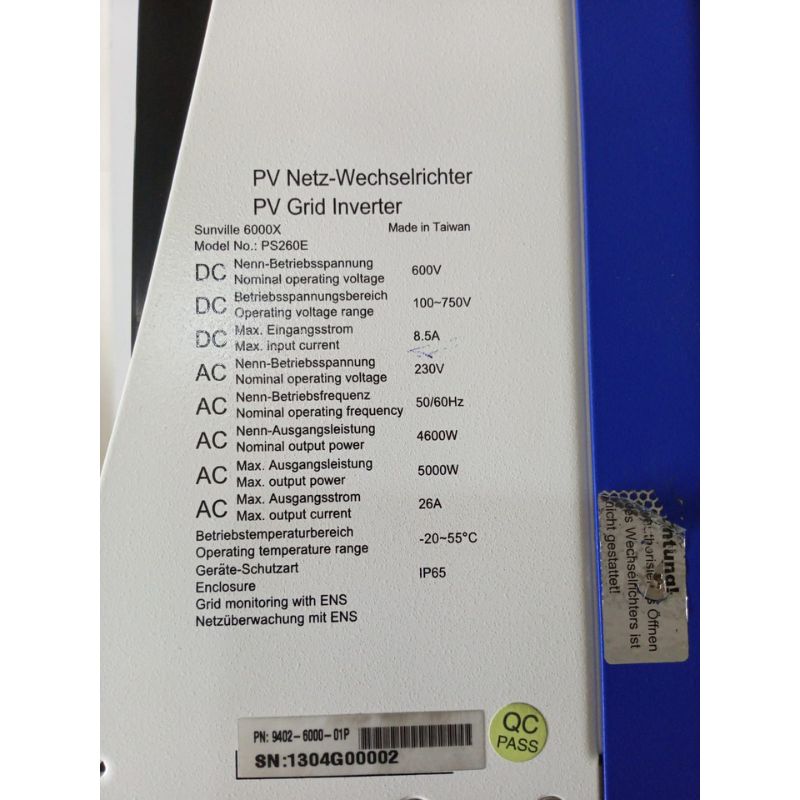

| Specification | Details |
|---|---|
| Model Name | Sunville 6000x |
| Inverter Type | On-Grid |
| PV Capacity | 5000W |
| Operating Voltage Range | 100V ~ 750V DC |
| Maximum Input Current | 8.5A |
| Operating Temperature | -20°C to +55°C |
| Protection Rating | IP65 (Dust & Water Resistant) |
| Net Weight | 31 kg |
| Dimensions (D × W × H) | 430 × 530 × 130 mm |
| Communication Interface | RS232 (Standard), RS485 (Optional) |
| Display | LCD Screen |
| Peak Efficiency | 96% |
| Cooling | Fanless, Natural Convection |
| Grid Monitoring | VDE 0126-1-1 Compliant |
| Safety Feature | Internal GFCI (30mA) |
| Casing | Compact Metal Housing |
