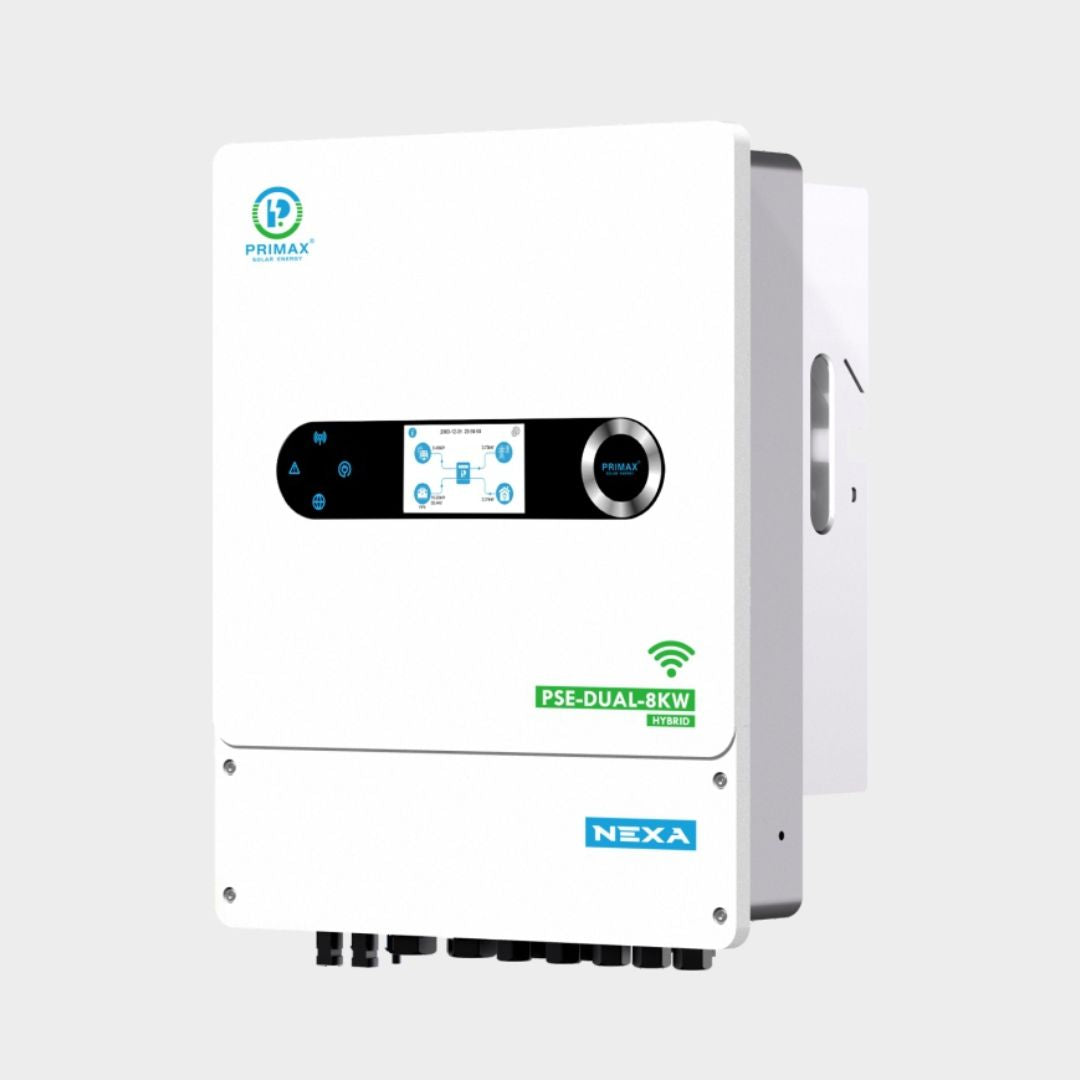

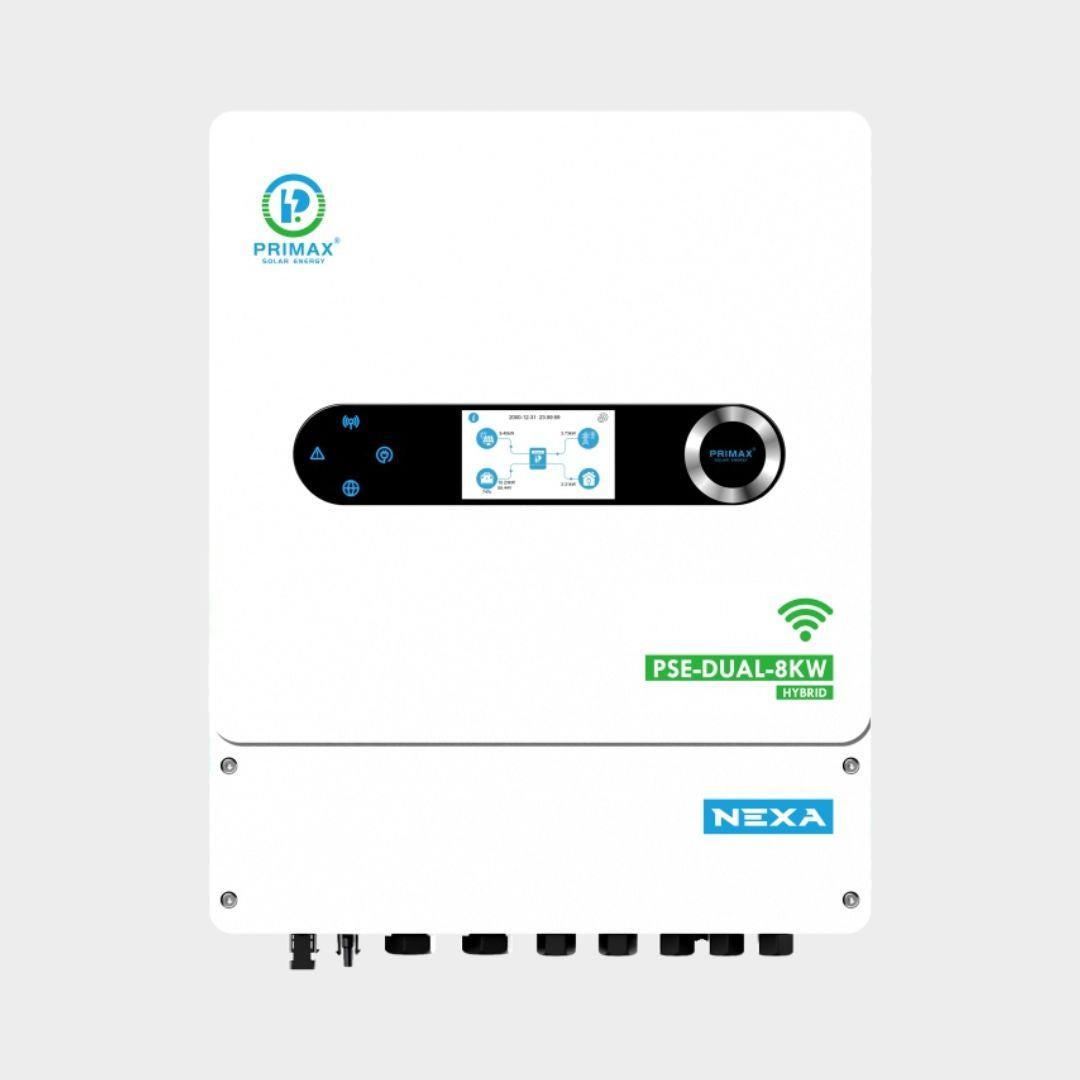

PRIMAX NEXA PSE-DUAL-8KW – HYBRID SOLAR INVERTER

PRIMAX NEXA PSE-DUAL-8KW – HYBRID SOLAR INVERTER - Image 3

PRIMAX NEXA PSE-DUAL-8KW – HYBRID SOLAR INVERTER

₨ 345,000

Category solar inverter

Description

PRIMAX NEXA PSE-DUAL-8KW Hybrid Solar Inverter

A high-capacity hybrid solar inverter designed to meet the demands of large-scale solar power systems. Engineered for efficiency, durability, and advanced performance, it’s perfect for residential, commercial, or industrial applications.

Key Features

High DC Input Power: Supports up to 12,000W for robust solar energy input.
Wide MPPT Voltage Range: Operates efficiently within 150-450V for maximum solar power extraction.
Dual MPPT: Two independent Maximum Power Point Tracking units for enhanced flexibility and efficiency.
Maximum Input Voltage: 500V with a starting voltage of 125V for rapid initialization.
Powerful Output: Rated output power of 8,000W with a maximum output current of 27A.
Flexible Battery Support: Compatible with both Lithium and Lead Acid batteries; rated at 48V.
Optimized Charging: Maximum charge/discharge current of 120A for quick and efficient battery performance.
BMS Integration: Equipped with CAN/RS485 communication for seamless Battery Management System connectivity.
Compact and Lightweight: Dimensions of 424 x 555 x 197 mm and a weight of only 19 kg.

SPECIFICATIONS

PV INPUT	PSE-DUAL-8KW
Max. DC input power [W]	12000
Max. DC input voltage [V]	500
MPPT voltage range [V]	150-450
Starting voltage [V]	125
Max. input current [A]	30/18
Max. short circuit current [A]	37.5/22.5
Number of MPP trackers	2
Strings per MPP tracker	2/1
AC OUTPUT (GRID)
Rated output power [W]	8000
Max. output apparent power [VA]	8800
Rated output voltage [V]	220/230/240
Rated output frequency [Hz]	50/60
Max. output current [A]	40
THDi	<3%
Output power factor	-0.8 leading +0.8 lagging
AC OUTPUT (TWO BACKUP)
Full Max. output power 3 [W]	8000
Rated output voltage 3	220/230
Rated output frequency 3 [Hz]	50/60(±0.2%)
Back up 1 Max. output power 3 [W]	8000
Back up2 Max. output power 3 [W]	8000
Output Power Factor(off grid)	-0.8 leading +0.8 lagging
Output Current Harmonic Distortion	THD <3%(Nonlinear load); THD<1.5% (Linear load)
Max. output current [A]	40
BATTERY PARAMETERS
Battery Type	Lithium or lead acid battery
Rated battery voltage [V]	48
Voltage range 33 [V]	44-57
Max. charge/discharge current [A]	190
BMS communication	CAN/RS485
EFFICIENCY
Max. efficiency (PV)	97.6%
Max. efficiency(cell)	94.5%
European efficiency	97%
PROTECTION
PV input reverse polarity protection	Yes
PV insulation resistance detection	Yes
Residual current detection	Yes
Output over current protection	Yes
Output short circuit protection	Yes
Output over voltage protection	Yes
OTHERS
Operating temperature range [°C]	-25-60
Storage temperature range [°C]	-30-65
Humidity range	0-95%
Operating altitude [m]	≤4000
Communication	RS485/CAN/WiFi/Ethernet/4G
Noise (db) [db]	<25
Size (WXHXD) [mm]	424555197
Weight [kg]	19
STANDARD
	EN 62109-1/2, IEC 62109-1/2, EMC 61000, EN50549, VDE 4105/0124, NRS 097-2-1, IEC61727/62116/61683
