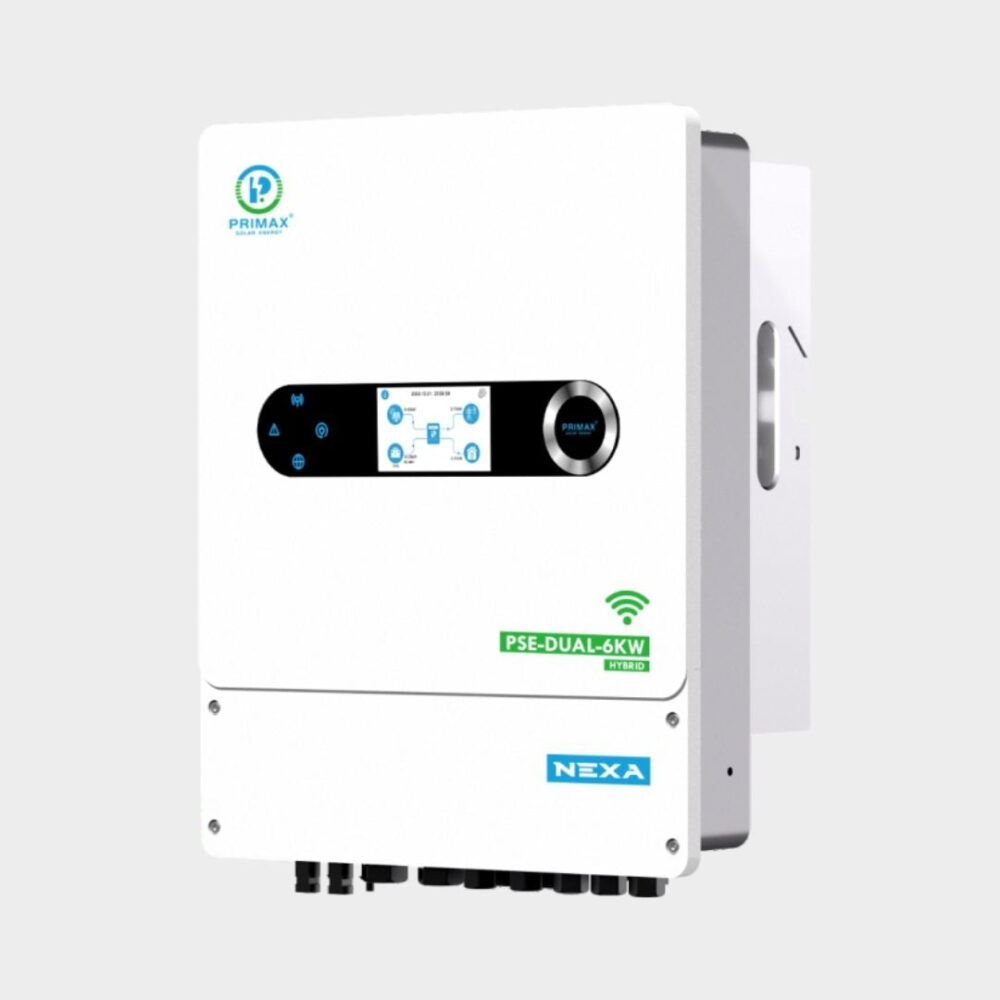

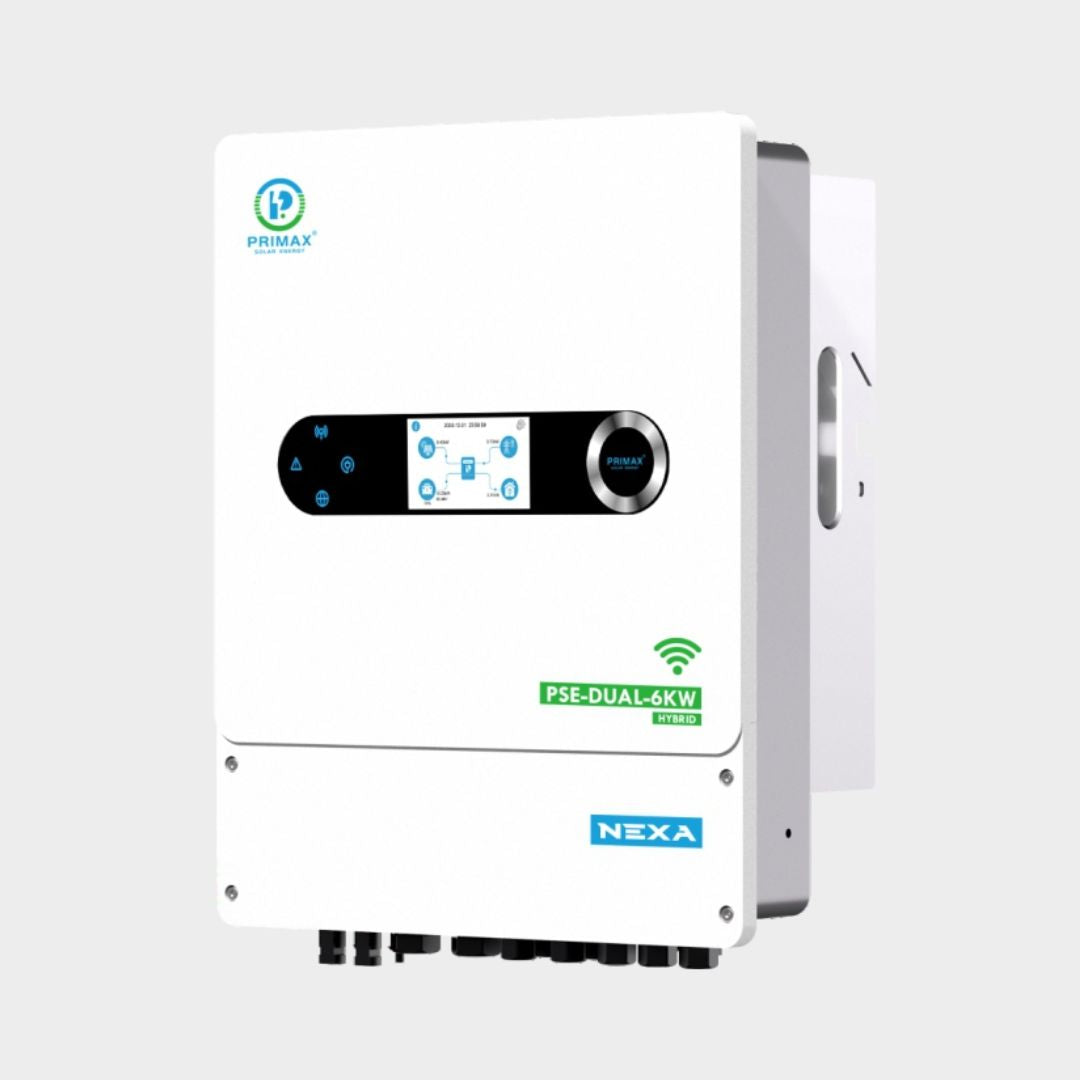

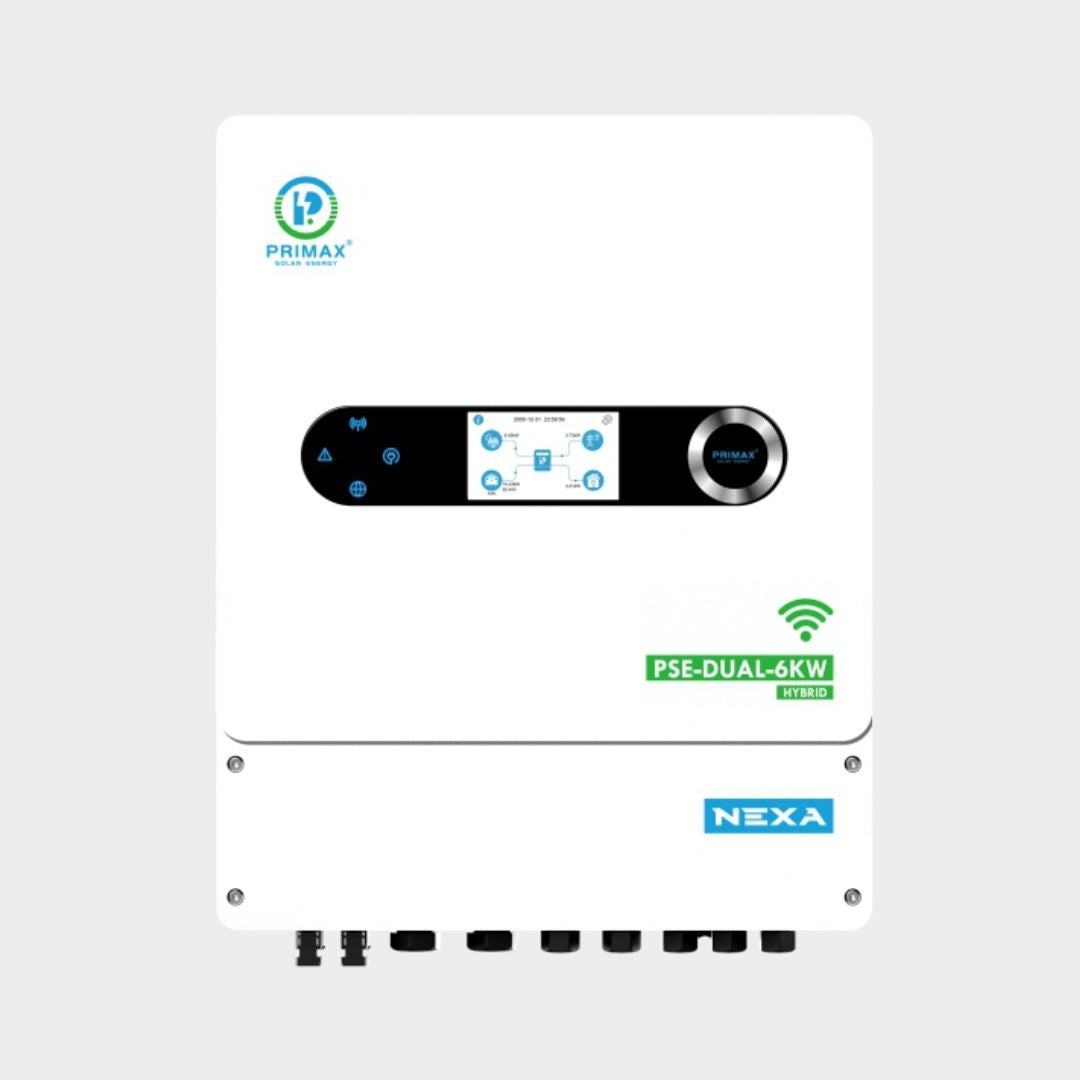

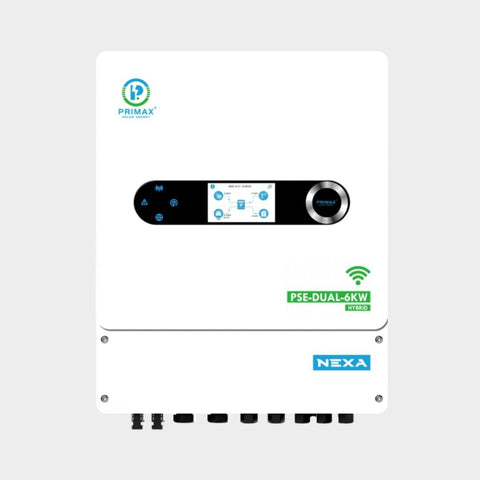

PRIMAX NEXA PSE-DUAL-6KW – HYBRID SOLAR INVERTER

₨ 245,000

Category solar inverter

Description

PRIMAX NEXA PSE-DUAL-6KW Hybrid Solar Inverter

A versatile and efficient hybrid solar inverter built for medium to large-scale solar energy systems. Ideal for residential and commercial use, offering advanced technology and robust performance.

Key Features

High DC Input Power: Handles up to 9,000W for strong solar energy input.
Wide MPPT Voltage Range: Operates efficiently within 150-450V for optimal solar power harvesting.
Dual MPPT: Two independent Maximum Power Point Tracking units for increased system flexibility and efficiency.
Maximum Input Voltage: 500V with a starting voltage of 125V for fast activation.
Rated Output Power: 6,000W with a maximum output current of 27A for stable performance.
Flexible Battery Options: Supports Lithium and Lead Acid batteries; rated at 48V.
Optimized Battery Performance: Maximum charge/discharge current of 120A for rapid and efficient battery operations.
BMS Communication: Equipped with CAN/RS485 for seamless integration with Battery Management Systems.
Compact and Lightweight Design: Dimensions of 427 x 554 x 198 mm and a weight of 19 kg.

SPECIFICATIONS

Model	PSE-DUAL-6KW
PV INPUT
Max. DC input power [W]	9000
Max. DC input voltage [V]	500
MPPT voltage range [V]	150-450
Starting voltage [V]	125
Max. input current [A]	18/18
Max. short circuit current [A]	22.5/22.5
Number of MPP trackers	2
Strings per MPP tracker	1
AC OUTPUT (GRID)
Rated output power [W]	6000
Max. output apparent power [VA]	6600
Rated output voltage [V]	220/230/240
Rated output frequency [Hz]	50/60
Max. output current [A]	27
THDi	<3%
Output power factor	~1 (-0.8 leading +0.8 lagging)
AC OUTPUT (TWO BACKUP)
Full Max. output power [W]	6000
Rated output voltage [V]	220/230
Rated output frequency [Hz]	50/60(±0.2%)
Back up1 Max. output power ΣΣ	6000
Back up2 Max. output power ΣΣ	6000
Output Power Factor(off grid)	1 (0.8 leading to 0.8 lagging)
Output Current Harmonic Distortion	THD 3% (Nonlinear load); THD<1.5% (Linear load)
Max. output current [A]	27
BATTERY PARAMETERS
Battery Type	Lithium or lead acid battery
Rated battery voltage [V]	48
Voltage range [V]	44-57
Max. charge/discharge current [A]	120
BMS communication	CAN/RS485
EFFICIENCY
Max. efficiency (PV)	97.6%
Max. efficiency(cell)	94.5%
European efficiency	97%
PROTECTION
PV input reverse polarity protection	Yes
PV insulation resistance detection	Yes
Residual current detection	Yes
Output over current protection	Yes
Output short circuit protection	Yes
Output over voltage protection	Yes
OTHERS
Operating temperature range [°C]	-25-60
Storage temperature range [°C]	-30-65
Humidity range	0-95%
Operating altitude [m]	≤4000
Communication	RS485/CAN/WiFi/Ethernet/4G
Noise (db)	<25
Size (WXHXD) [mm]	427554198
Weight [kg]	19
STANDARD
	EN 62109-1/2, IEC 62109-1/2, EMC 61000, EN50549, VDE 4105/0124, NRS 097-2-1, IEC61727/62116/61683
