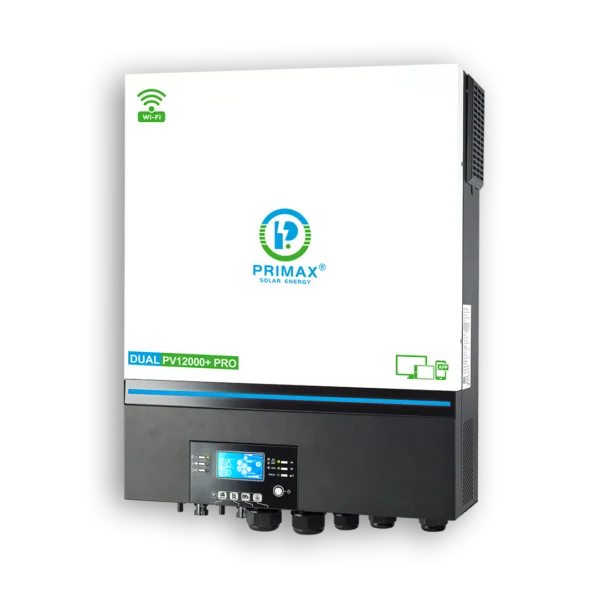

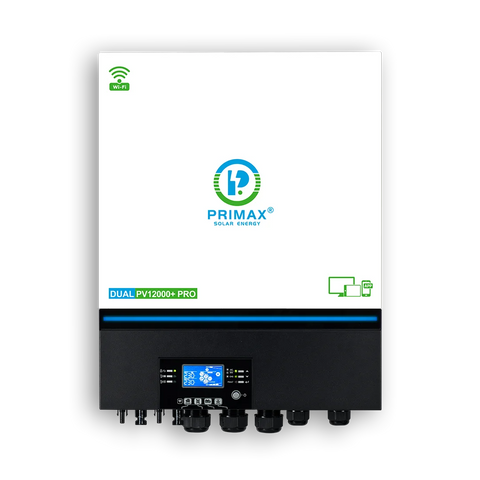

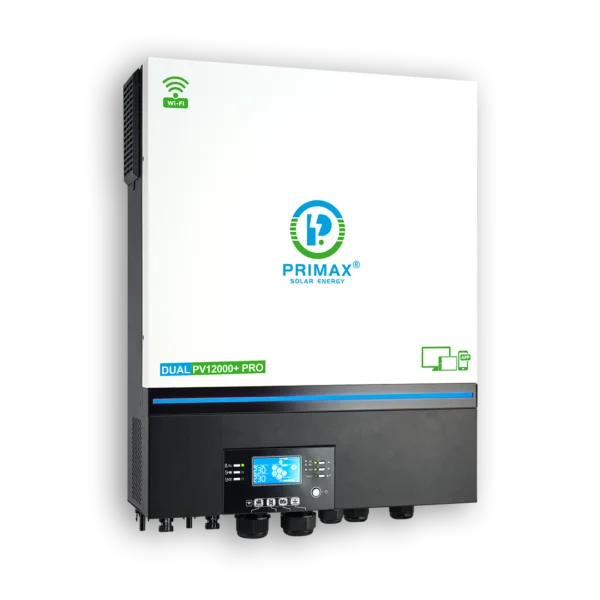

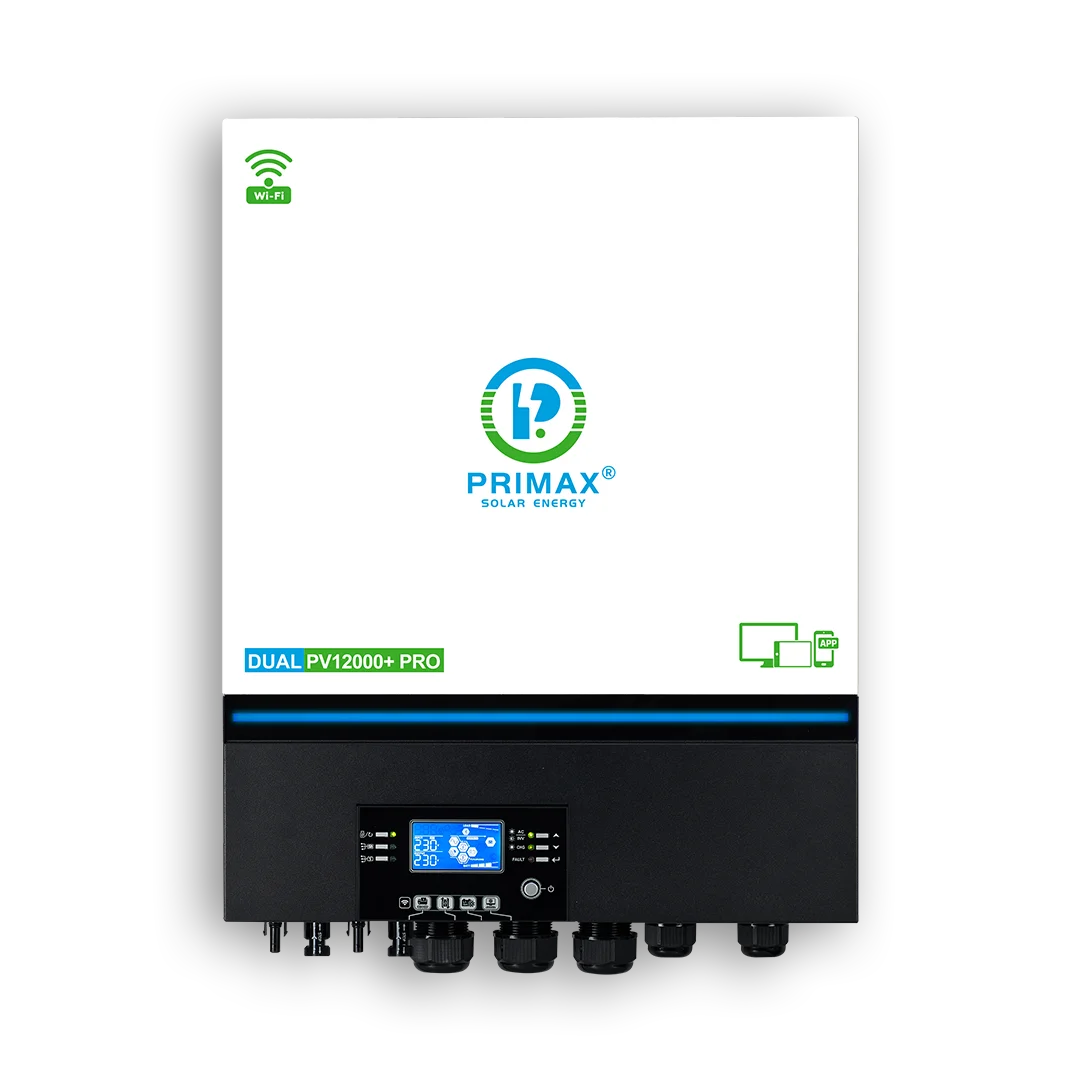

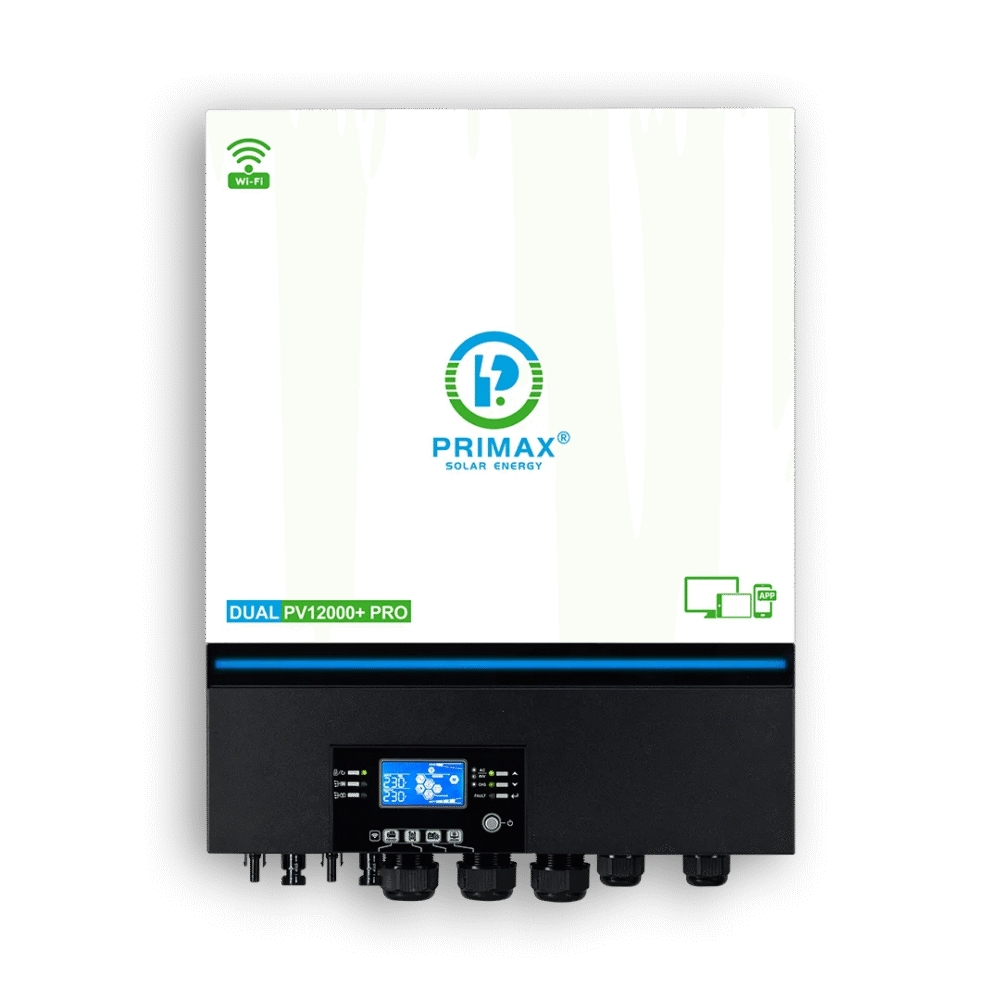

PRIMAX GALAXY DUAL PV12000+ PRO HYBRID SOLAR INVERTER 11KW With 12KW MPPT Solar Charge Controller
₨ 300,000
PRIMAX GALAXY DUAL PV12000+ PRO Hybrid Solar Inverter 11KW
A high-performance hybrid solar inverter tailored for large-scale residential and commercial applications. With advanced features for efficient energy management, grid integration, and optimal power output, this inverter is a robust choice for demanding energy needs.
Key Features
- Dual Outputs: Enables smart load management for efficient power distribution.
- High PV Input Capacity: Supports up to 12,000W (6,000W x 2) with a maximum input current of 40A for optimal solar energy intake.
- Wide PV Input Voltage Range: Works within a voltage range of 90VDC ~ 450VDC, offering flexibility for various solar panel setups.
- RGB Status Indication: Customizable RGB lights for easy status monitoring.
- Built-in Wi-Fi: Allows for mobile monitoring and control via Android/iOS apps.
- USB On-the-Go Support: Facilitates quick data access and system updates via USB.
- Comprehensive Communication Options: Includes reserved communication ports (RS485, CAN-BUS, RS232) for Battery Management System (BMS) integration.
- Maximum Charging Current: Can charge batteries with up to 120A for fast and efficient energy storage.
- Battery-Independent Design: Operates without a battery, reducing upfront costs for users who do not require storage.
- Grid and Generator Compatibility: Can be connected to utility mains or a generator for added flexibility in hybrid systems.
- Feed-in to the Grid with Storage Backup: Allows for grid integration while maintaining energy backup for critical loads.
- Durable and Reliable: Built-in anti-dust kit ensures reliable performance in harsh environments.
- Parallel Operation: Expandable with parallel operation of up to 6 units to meet higher energy demands.
- Maximum AC Output: Delivers a powerful 11,000W of AC output, ensuring optimal power delivery for large systems.
The PRIMAX GALAXY DUAL PV12000+ PRO offers advanced features, scalability, and robust performance, making it an ideal solution for large-scale energy systems.
| RATED POWER
PHASE |
11000V/11000W1- Phase In / 1- Phase Out |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz(Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC+-5% |
| Surge Power | 22000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (For Personal Computers)
20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 66VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum PV Array Power | 11000W (5500W x 2) |
| MPPT Range@ Operating Voltage
Maximum PV Input Current |
90¬450VDC
27A x 2 (MAX 40A) |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| PHYSICAL | |
| Dimension D*W*H(mm)
Net Weight (Kgs) |
147.4*432.5*553.6
18.4 |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| OPERATING ENVIRONMENT | |
| Humidity | 0% to 90% Relative Humidity (Non-Condensing) |
| Operating Temperature | -10¬50C |
| Storage Temperature | -15¬60C |
| STANDARDCompliance Safety | CE |
