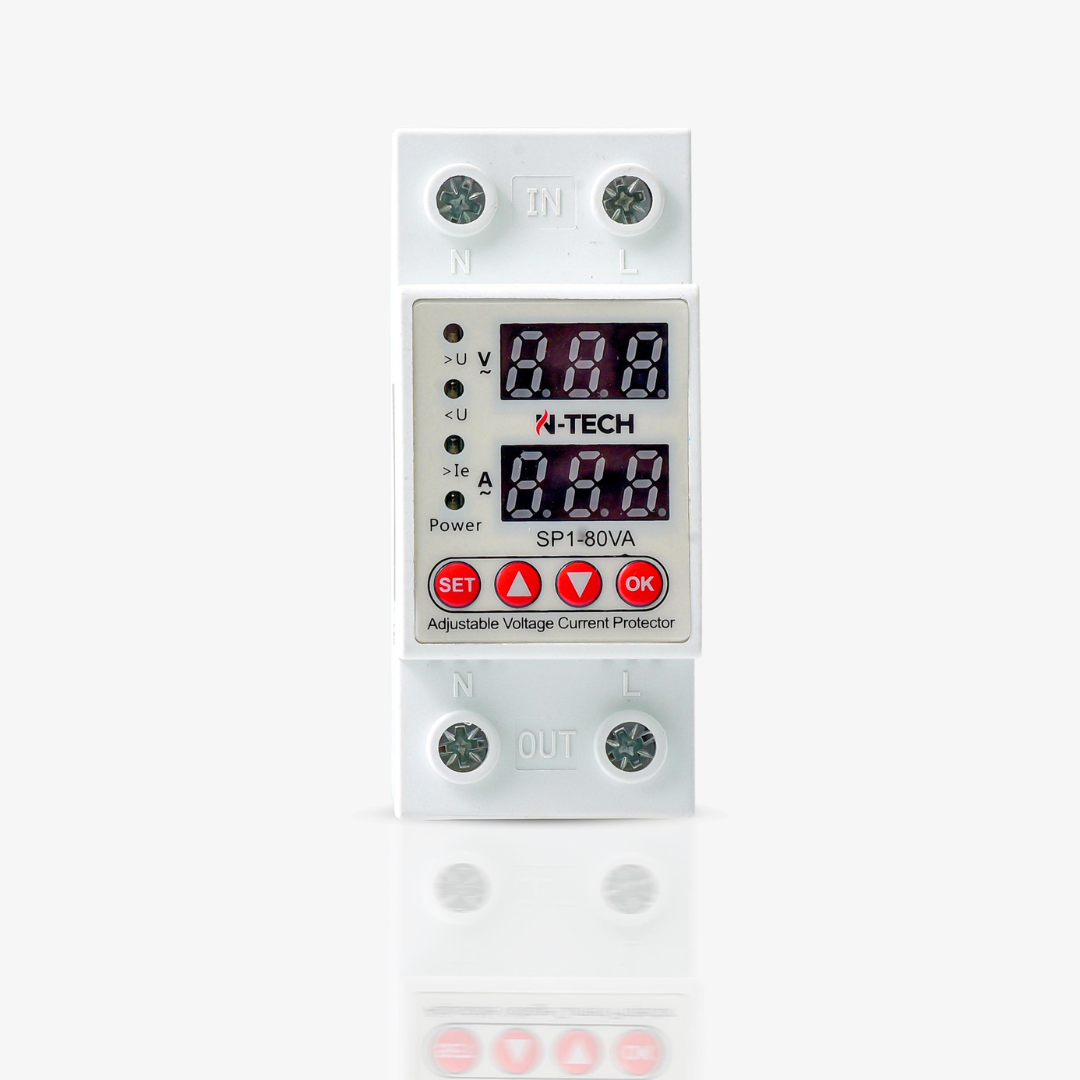

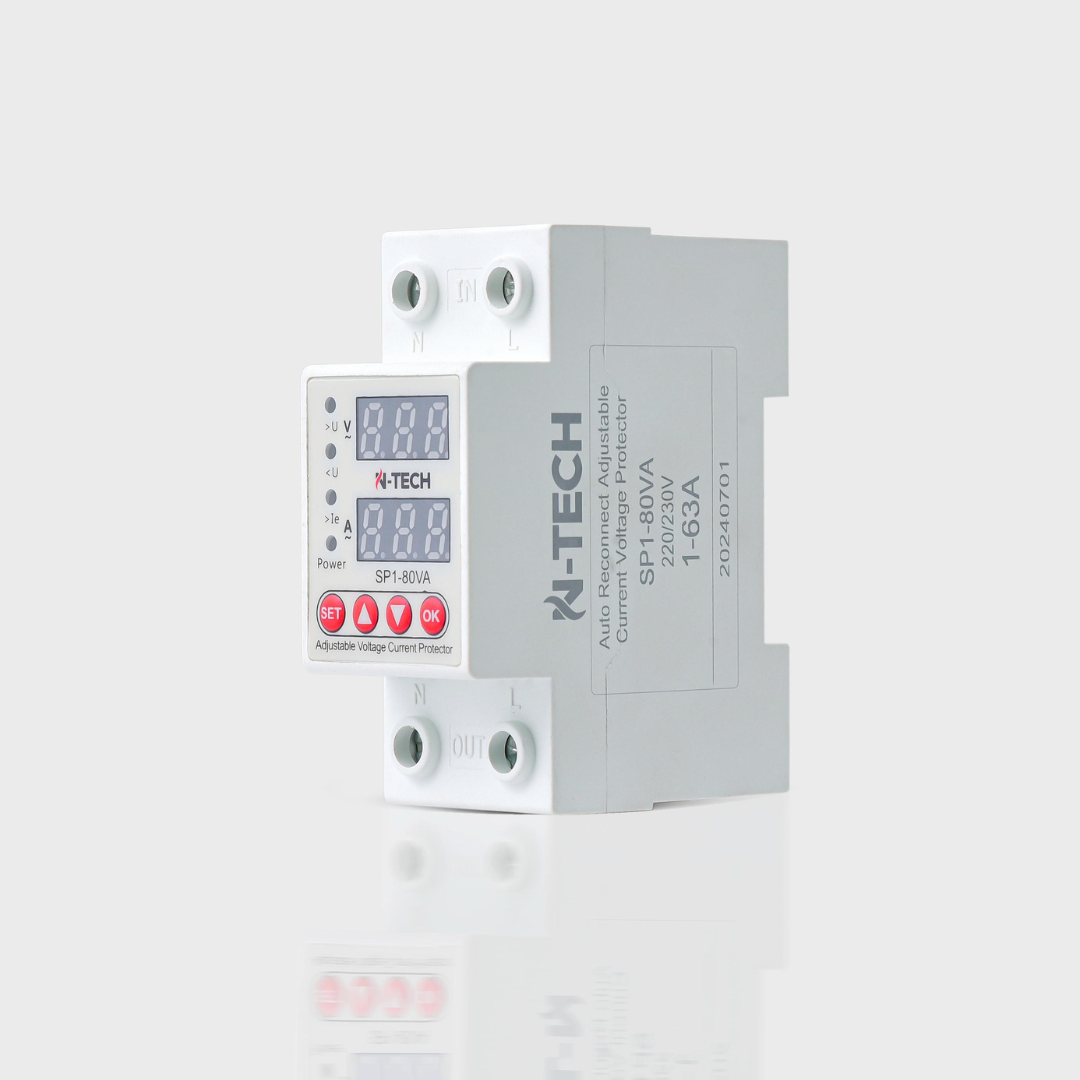

N-Tech SP2-80VA 63A Voltage Protection Device – Over and Under Voltage Protective Device

SP2-80VA Voltage Protection Device – Reliable Power Protection

The SP2-80VA is a high-performance voltage protection device designed for industrial, commercial, and electrical applications. It safeguards electrical systems by monitoring voltage fluctuations and automatically disconnecting power in case of over voltage or under voltage, preventing damage to sensitive equipment.

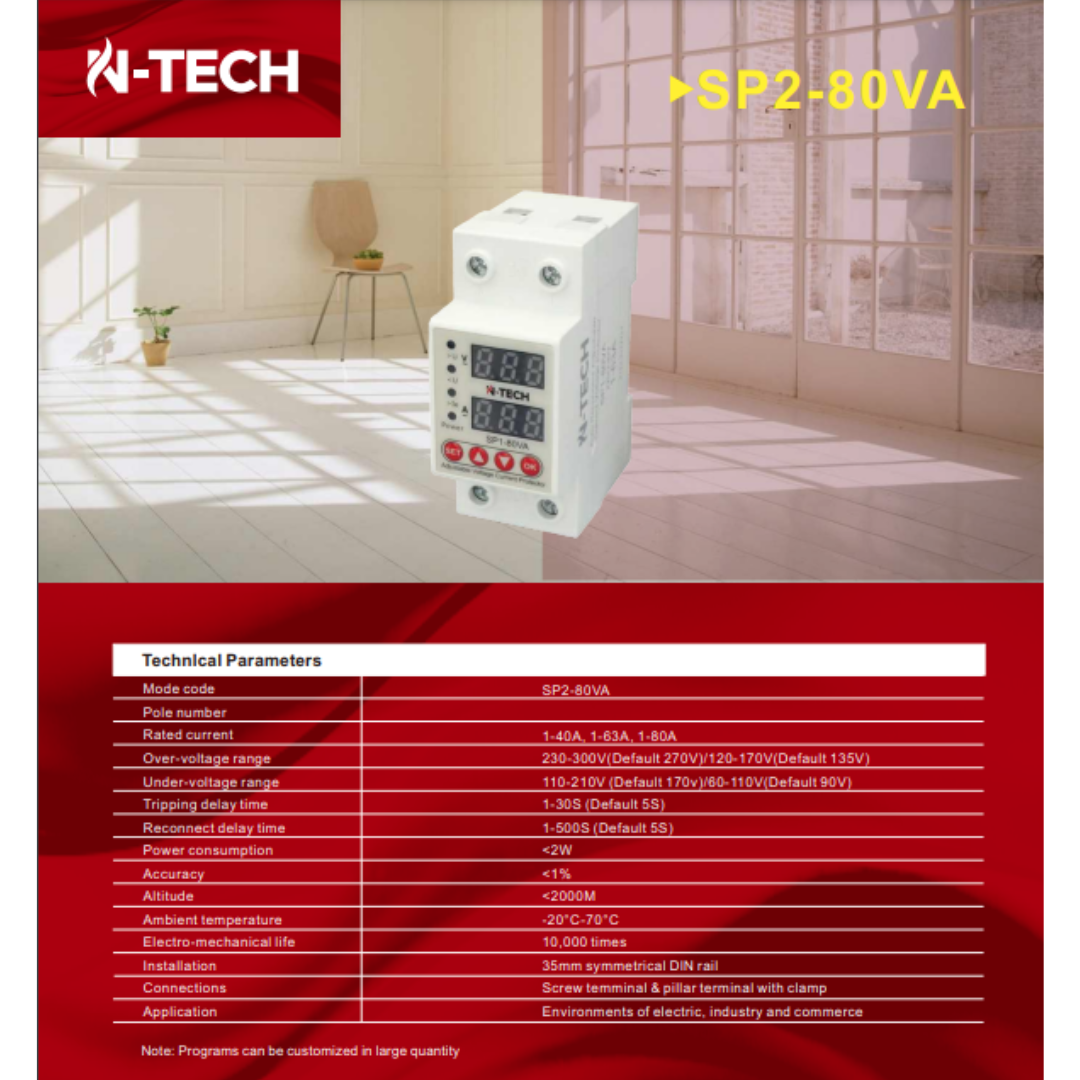

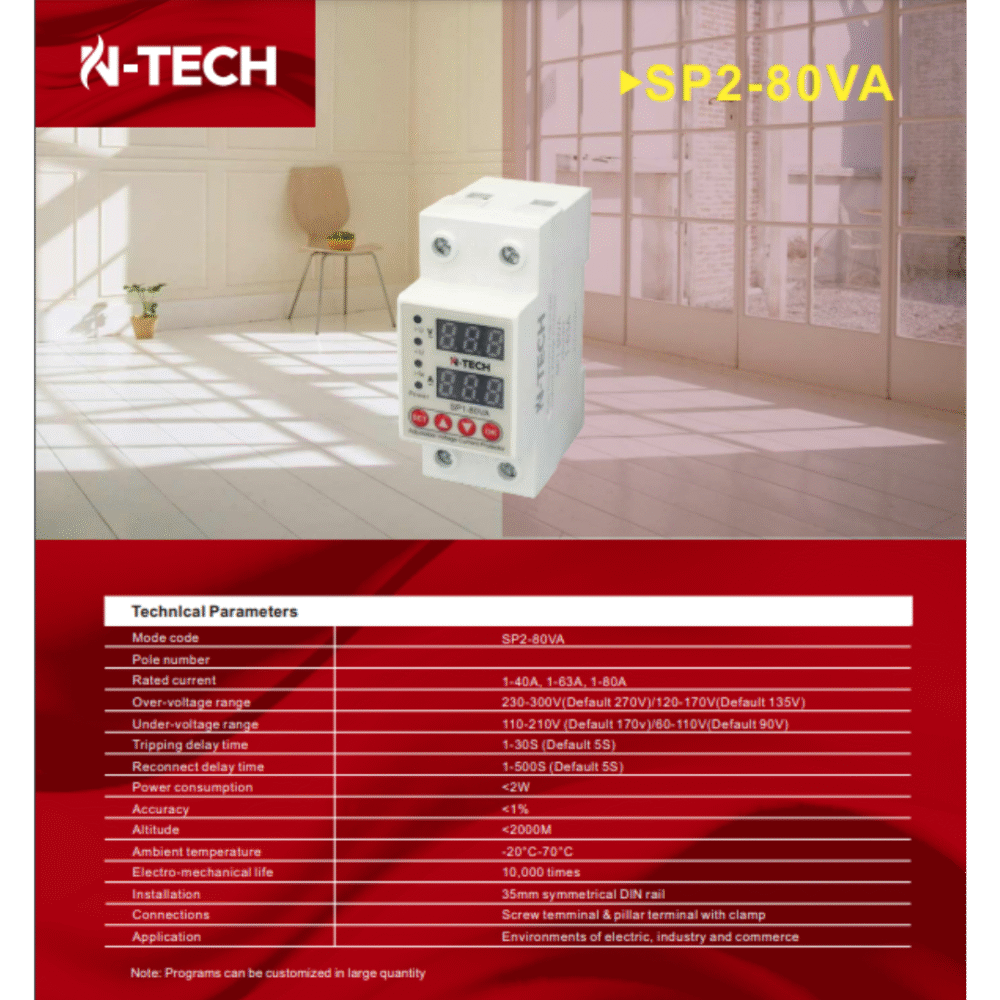

Key Technical Parameters:

• Pole Number: 1P
• Rated Current: 40A, 63A, 80A
• Over-voltage Range: 230-300V (Default 270V) / 120-170V (Default 135V)
• Under-voltage Range: 110-210V (Default 170V) / 60-110V (Default 90V)
• Tripping Delay Time: 1-30S (Default 5S)
• Reconnect Delay Time: 1-500S (Default 5S)
• Power Consumption: <2W
• Accuracy: <1%
• Altitude Limit: <2000M
• Operating Temperature: -20°C to 70°C
• Electro-mechanical Life: 10,000 operations
• Installation: 35mm DIN rail mounting
• Connections: Screw terminal & pillar terminal with clamp
• Application: Suitable for electric, industrial, and commercial environments

The SP2-80VA is a reliable solution for protecting electrical systems from voltage instability, ensuring safety and efficiency in various applications.
