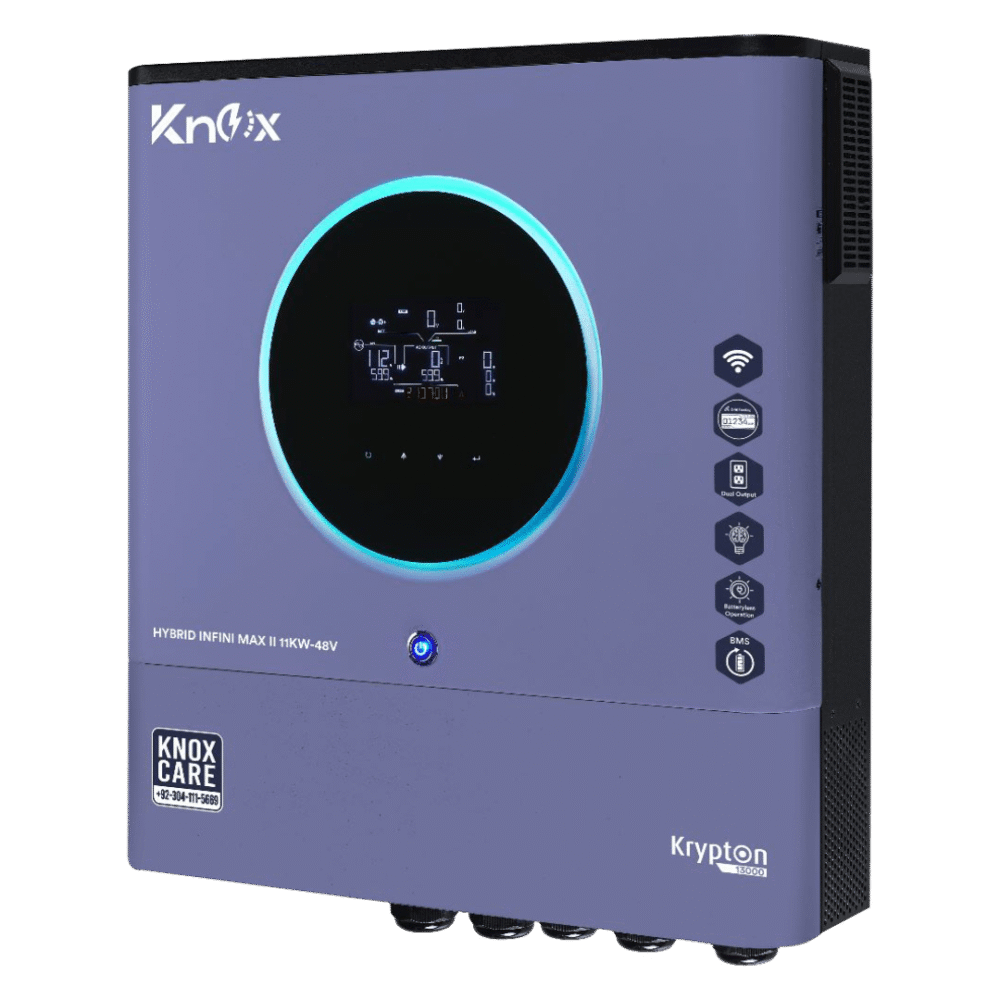

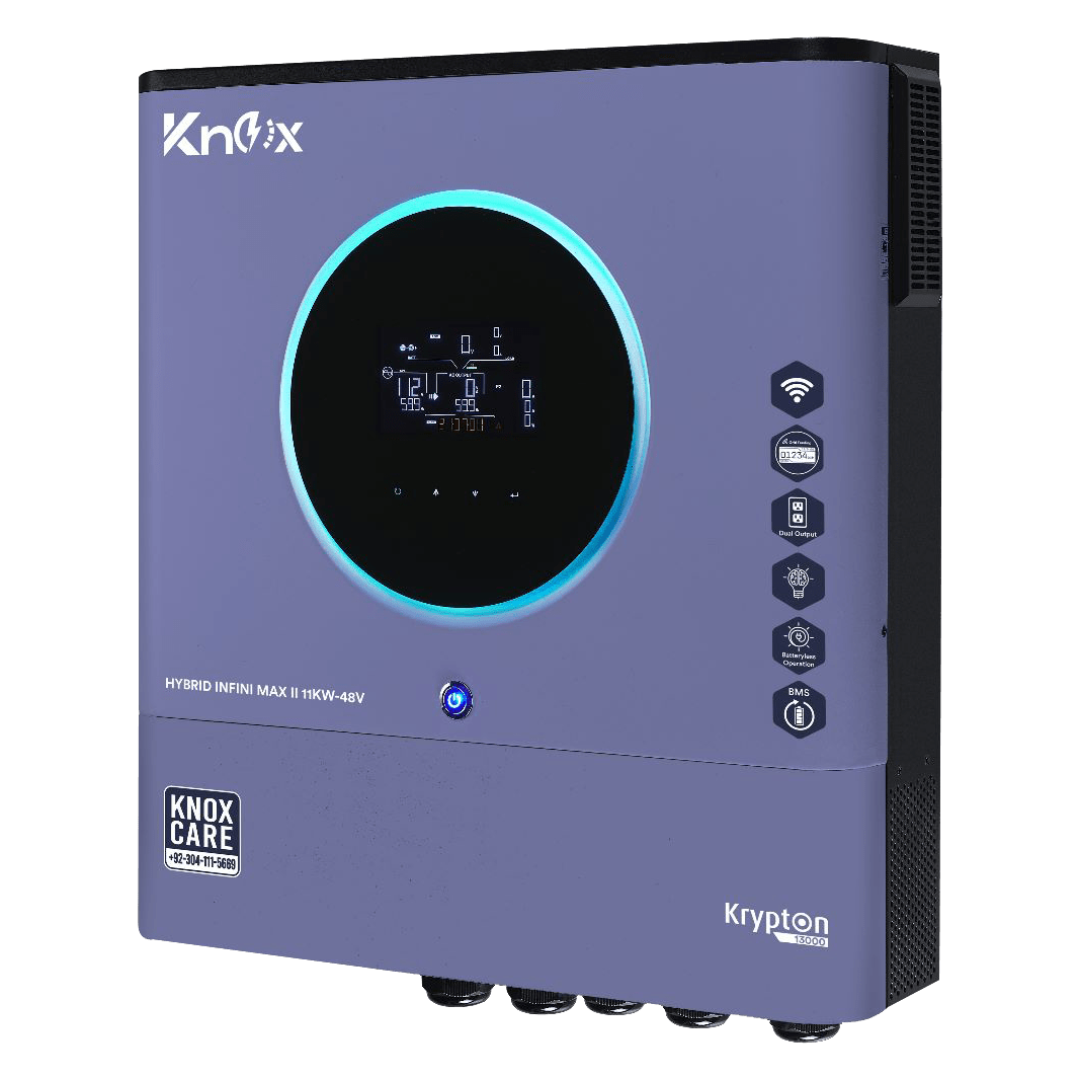

Knox Krypton 13000 11KW Hybrid Solar Inverter With PV 13000W
₨ 355,000
Knox Krypton 13000 11KW Hybrid Solar Inverter with PV 13000W
The Knox Krypton 13000 is an 11KW hybrid solar inverter designed for large-scale residential or commercial solar systems. With built-in Wi-Fi for online monitoring, this inverter provides efficient energy management, making it a reliable solution for users looking to maximize their solar power utilization.
Key Features
- Built-In Wi-Fi for Online Monitoring: Allows remote access and monitoring of system performance, ensuring optimal operation at all times.
- Durability and Protection with IP21 Rating: Offers protection against dust and water splashes, making it suitable for indoor or sheltered installations.
- Dual Output for Smart & Heavy Load: Capable of handling both light and heavy-duty appliances with ease, offering flexibility in energy distribution.
- Grid-Tied Solar Power Integration: Efficiently integrates with the grid, enhancing overall energy savings and reducing reliance on external power sources.
- Batteryless Operation: Functions without the need for a battery, providing a cost-effective solution for grid-connected systems.
- Battery Management System: Optimizes battery life and performance if batteries are used, ensuring efficient energy storage.
The Knox Krypton 13000 is the ideal choice for users seeking a powerful, scalable hybrid solar inverter that offers flexibility, efficiency, and longevity for both residential and commercial applications.
Technical Data Sheet:
| KNOX SERIES | Krypton 13000 |
| MODEL | HYBRID INFINI MAX II 11KW-48V |
| Phase | Single Phase |
| Maximum PV Input Power | 13000W (6500W x 2) |
| Rated Output Power | 11000W |
| GRID-TIE OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 120VDC / 150 VDC |
| MPP Voltage Range | 90 ~ 450 VDC |
| Number of MPP T rackers / Maximum Input Current | 27A x 2 (MAX 40A) |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
| Nominal Output Current | 48 A |
| Power Factor | > 0.99 |
| EFFICIENCY | |
| Maximum Conversion Efficiency (DC/AC) | 95% |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 120 – 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90 – 280 VAC or 170 – 280 VAC |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure sine wave |
| Efficiency (DC to AC) | 93% |
| DC Voltage | 12 VDC ± 5%, 100W |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger type | MPPT |
| Maximum Solar Charging Current | 150A |
| Maximum AC Charging Current | 150A |
| Maximum Charging Current | 150A |
| Surge Power | 22000VA |
| GENERAL | |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 158.4 x 503.6 x 530.8 |
| Net Weight (kgs) | 20 |
| INTERACE | |
| Parallel Function | YES, 6 units |
| Communication Port | USB/RS232/RS485/Wifi/Dry-contact |
| ENVIRONMENT | |
| Humidity | 0 ~ 90% RH (No condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
