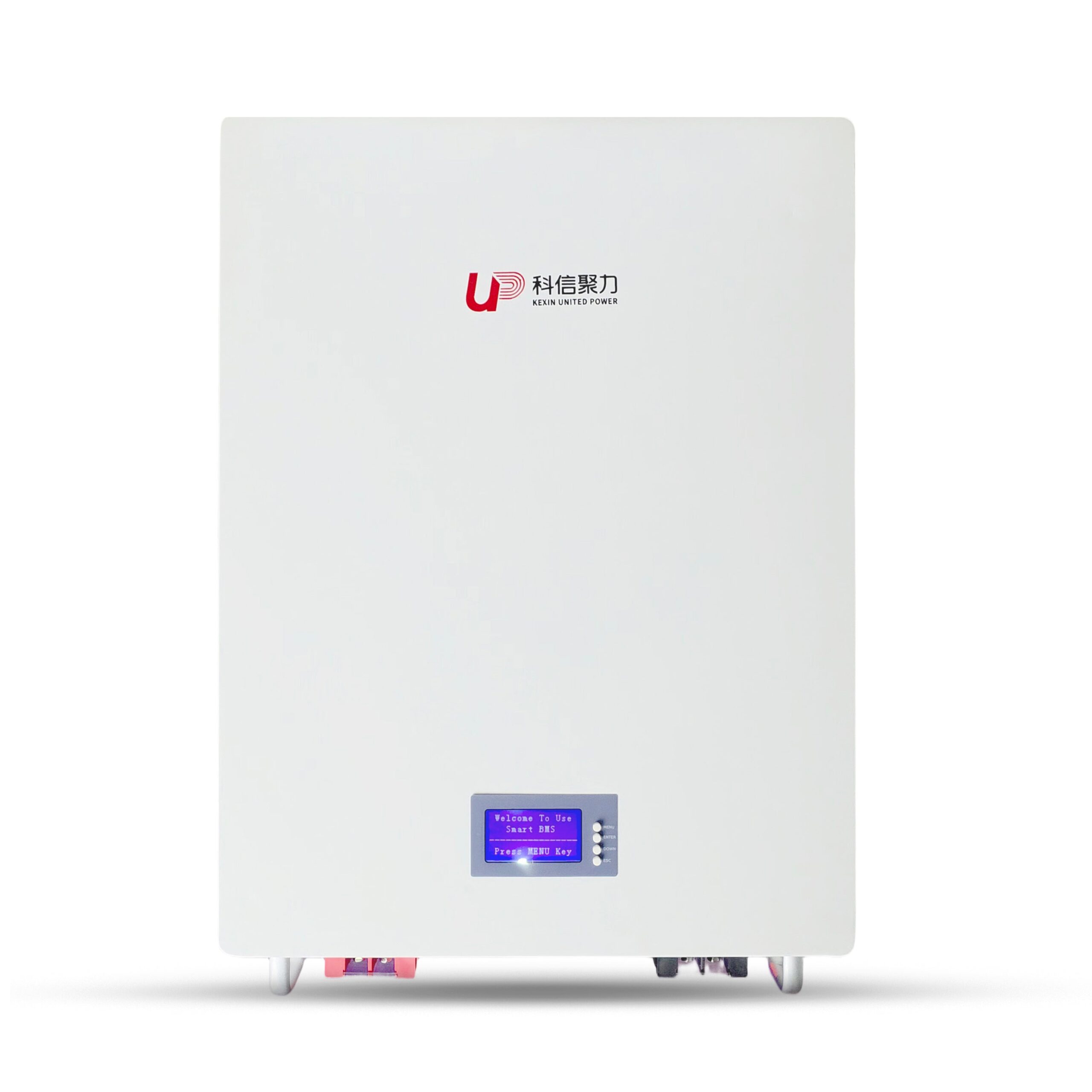

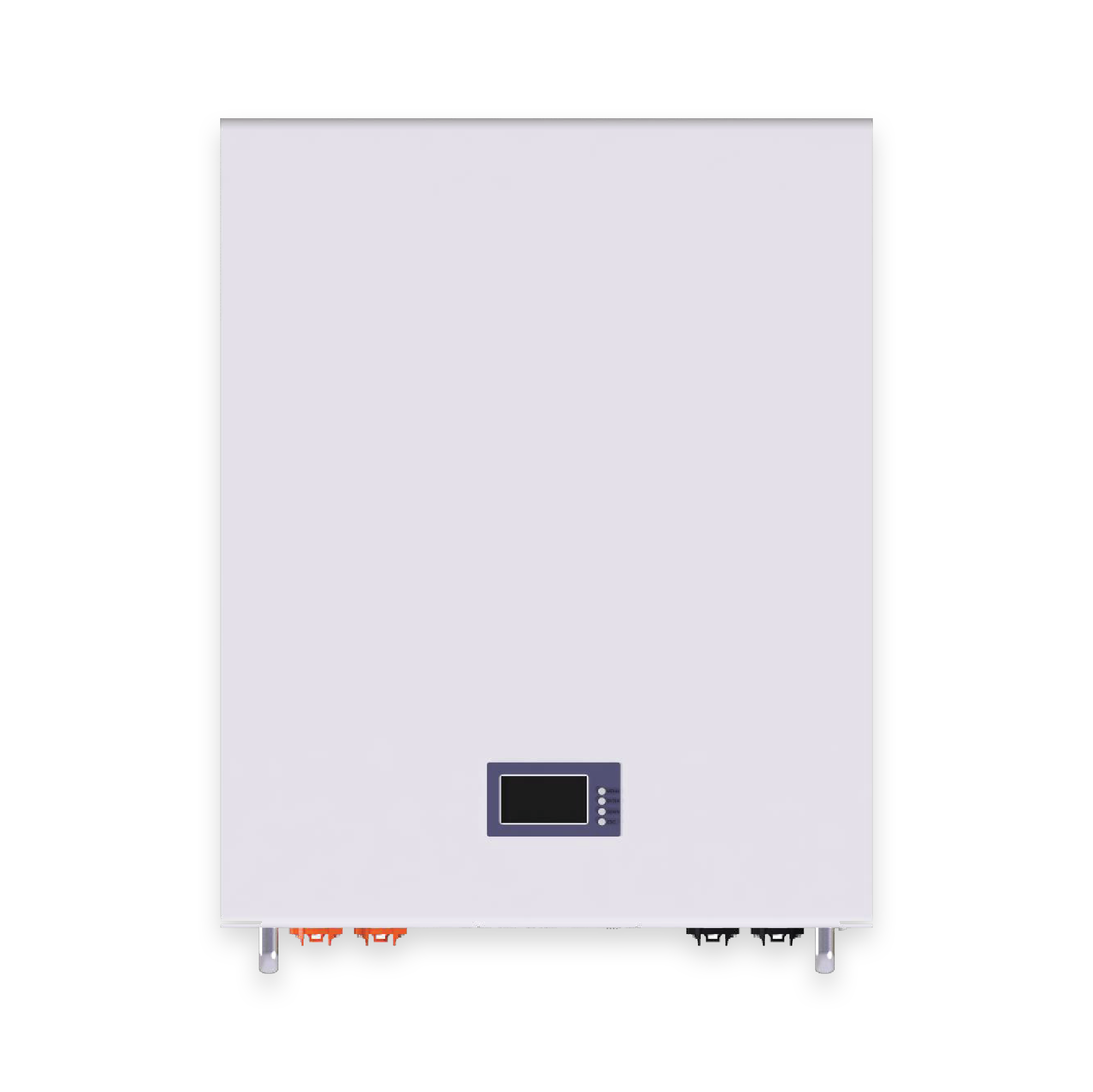

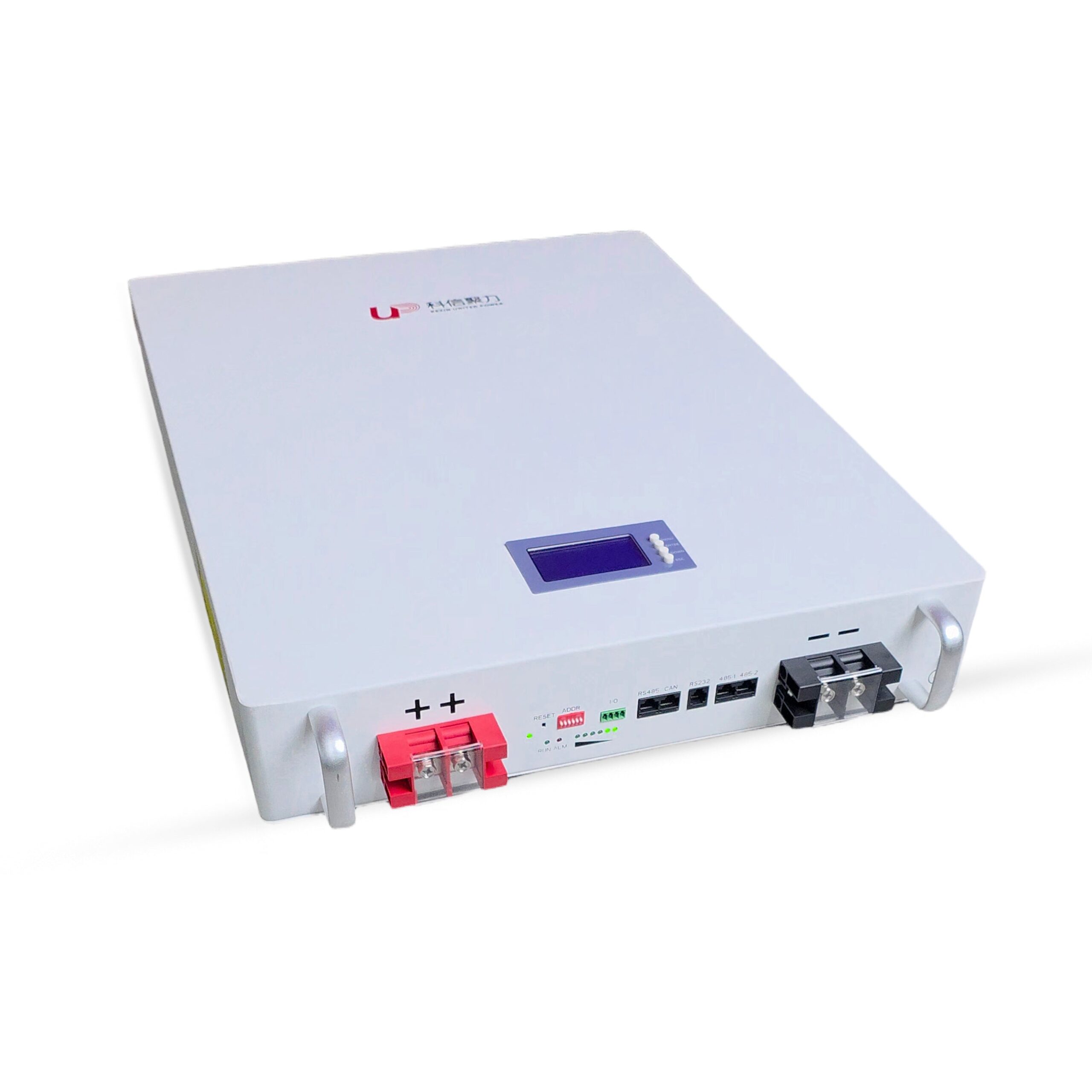

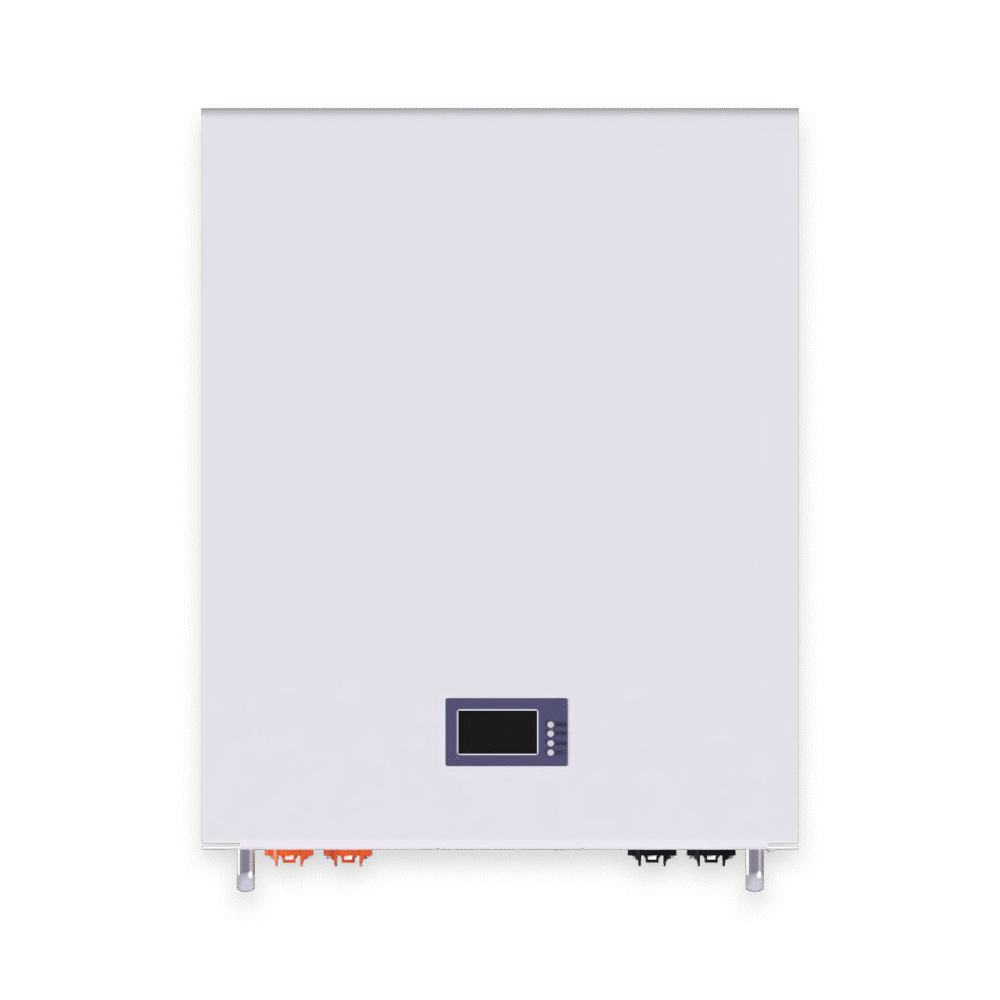

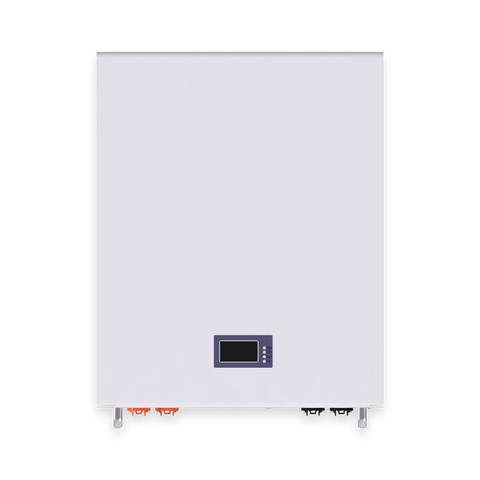

KEXIN UPPF16100A LiFePO₄ Lithium Battery 51.2V 100Ah – 5.12kWh – IP20
₨ 308,000
Share on facebook
Facebook
Share on twitter
X
Share on pinterest
Pinterest
Share on whatsapp
WhatsApp
The KEXIN UPPF16100A is a slim, wall-mounted LiFePO₄ battery designed for home and commercial energy storage. It delivers 5.12kWh of reliable power and includes a built-in Battery Management System (BMS) for protection against overcharging, overheating, and more.
You can connect up to 15 units in parallel for larger systems. It works with most popular inverters and features an LED strip for real-time status updates. Ideal for solar setups and backup power.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | UPPF16100A |
| Rated Voltage | 51.2V |
| Voltage Range | 40V – 58.4V |
| Rated Capacity | 100Ah |
| Energy Capacity | 5.12kWh |
| Configuration | 1P16S |
| Charging Voltage | 56.8V |
| Charging Current | Continuous: 50A, Max: 80A |
| Discharge Current | Max Continuous: 100A |
| Factory Voltage | 51.2V – 52.8V |
| Self-Discharge Rate | ≤2%/month |
| Balancing Method | Passive Equalization |
| Parallel Support | Up to 15 Units (Auto Coding) |
| Charging Temp. Range | 0℃ to +55℃ |
| Discharging Temp. Range | -20℃ to +60℃ |
| Ingress Protection | IP20 |
| Communication Ports | RS232 / RS485 / CAN |
| Dimensions (L×W×H) | 670 × 540 × 90 ±1 mm |
| Weight | 48 ±2 kg |
| Cycle Life | >6000 cycles @ 90% DOD, 25℃, 0.5C |
| Certifications | UN38.3, CE, IEC62619, ROHS |
