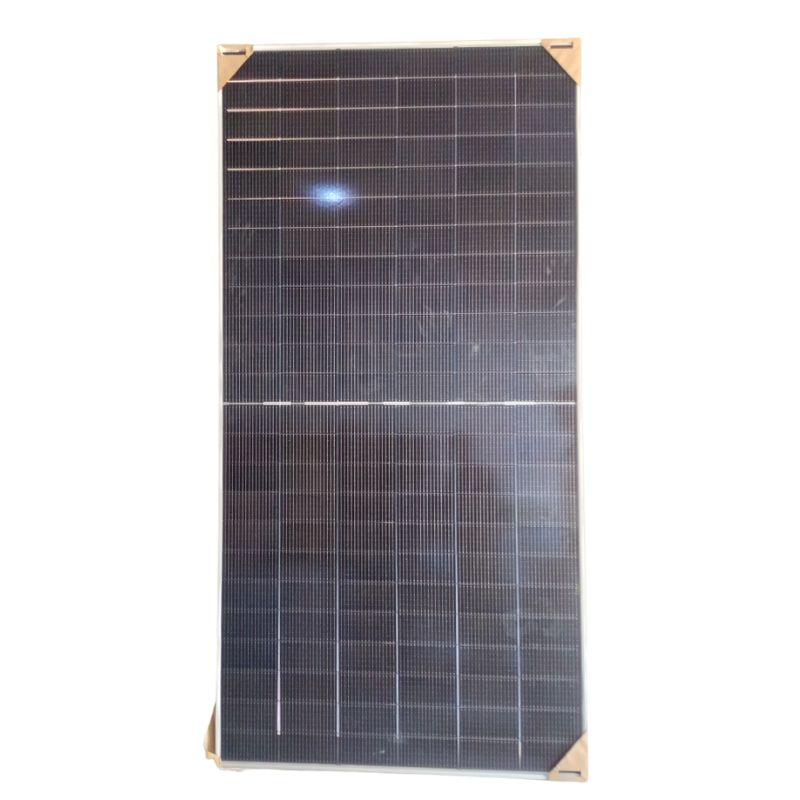

Jinko 590w-72HL4 Solar Module with dual Glass

Jinko 590w-72HL4 Solar Module with dual Glass

 21,240

  • N-type Technology :
    N-type modules with Tunnel Oxide Passivating Contacts (TOPCon) technology offer lower LID/LeTID degradation and better low light performance.
  • Dual-Sided Power Generation:
    Dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE.
  • SMBB Technology:
    Better light trapping and current collection to improve module power output and reliability.
  • HOT 2.0 technology :
    N-type modules with JinkoSolar’s HOT 2.0 technology offer better reliability and efficiency.
    Mechanical Load Enhanced
  • Certified to withstand:
    5400 Pa front side max static test load 2400 Pa rear side max static test load.
  • Anti-PID Guarantee:
    Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.

WARRANTY:

12-Year Product Workmanship Warranty
30-year Power Warranty

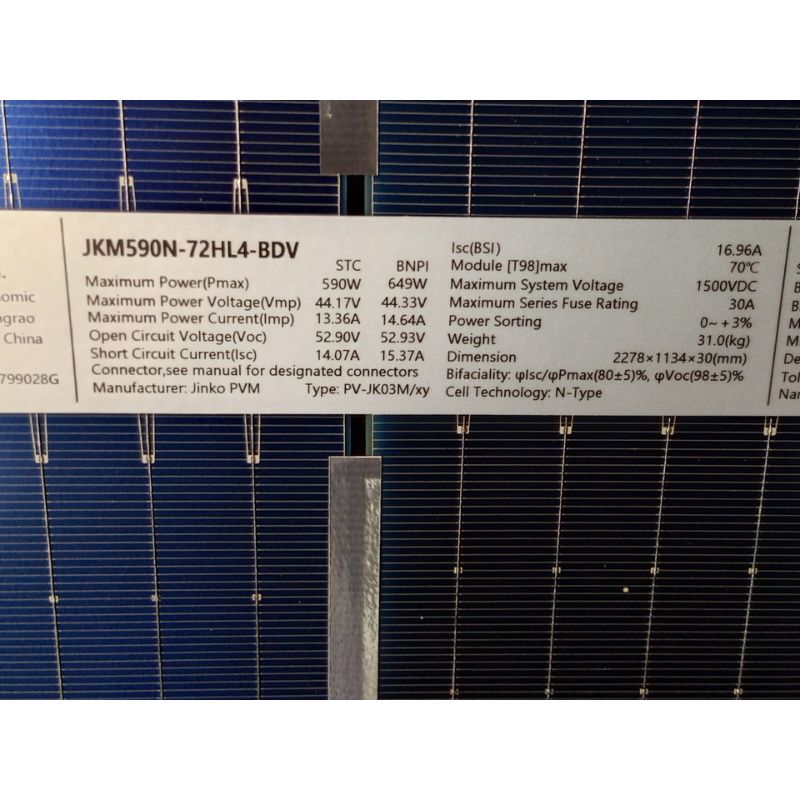

Specification

Details

Model Jinko N Type Bifacial 590W
Cell Type N-type Monocrystalline
Number of Cells 144 (72×2)
Module Dimensions 2278×1134×30 mm
Weight 31.0 kg
Frame Anodized Aluminium Alloy
Junction Box IP68 Rated
Maximum Power (Pmax) 590 W
Maximum Power Voltage (Vmp) 44.17 V
Maximum Power Current (Imp) 13.36 A
Open Circuit Voltage (Voc) 52.90 V
Short Circuit Current (Isc) 14.07 A
Module Efficiency 22.8%
Product Warranty 12 Years (Workmanship)
Power Warranty 30 Years

Download PDF!
