Inverex Veyron II 6KW Hybrid Solar Inverter

Original price was: ₨ 280,000.Current price is: ₨ 228,999.

Category Uncategorized

Description

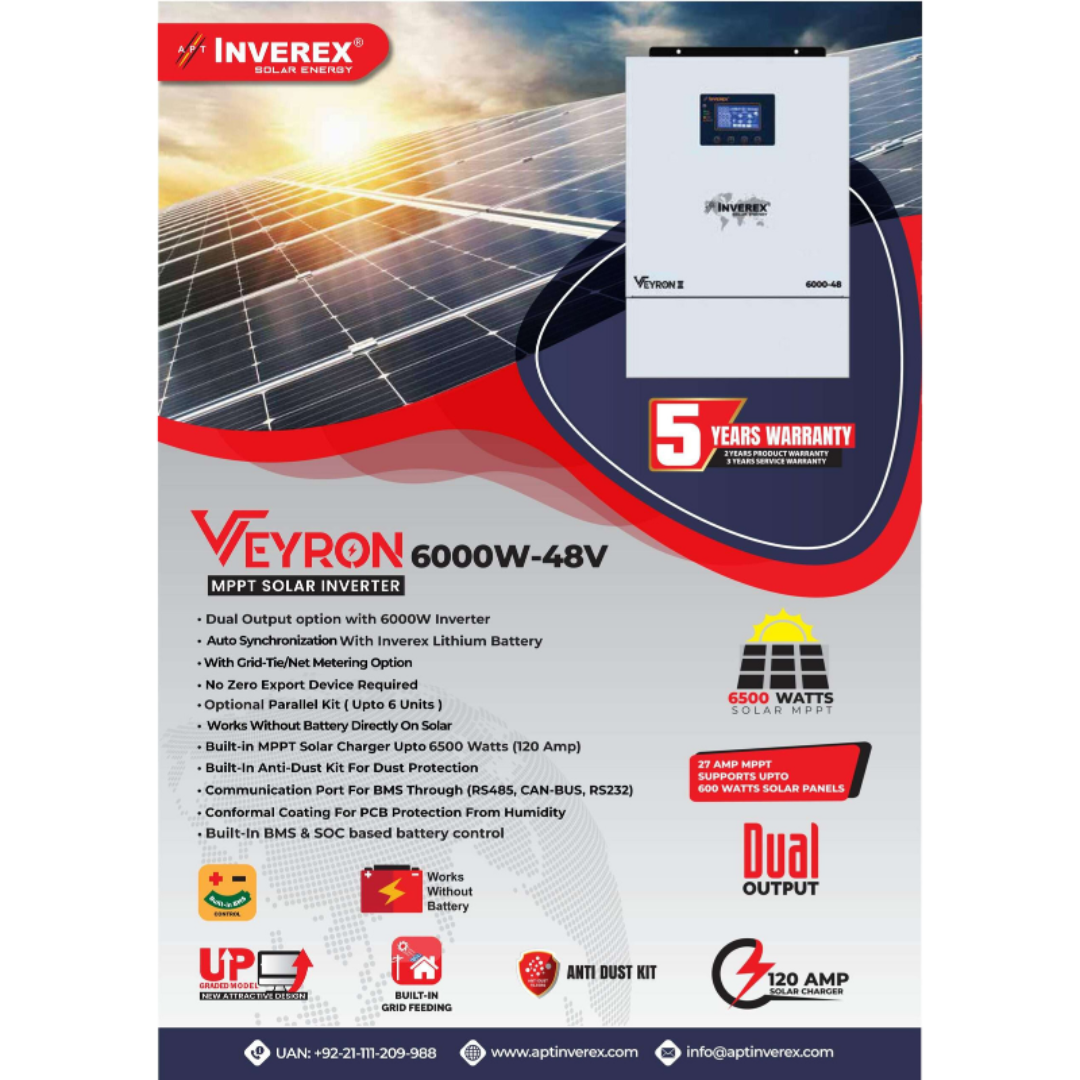

Inverex Veyron II 6KW Hybrid Solar Inverter

The Inverex Veyron II 6000-48 is a high-performance 6KW hybrid solar inverter designed for efficient energy management with grid-tie, net metering, and direct solar operation without batteries. With advanced MPPT solar charging, dual output options, and auto synchronization with Inverex lithium batteries, it ensures maximum energy utilization and reliability.

Key Features

6KW Pure Sine Wave Output – Stable and reliable power supply for all electrical appliances.
Dual Output with Smart Load Management – Supports separate priority loads.
Grid-Tie & Net Metering Option – Enables efficient grid power management.
Works Without Battery – Can run directly on solar power.
Built-in MPPT Solar Charger (6500W, 120A) – Optimized solar energy harvesting.
Auto Synchronization with Inverex Lithium Batteries – Ensures seamless battery integration.
No Zero Export Device Required – Simplifies net metering installation.
Parallel Operation Support (Up to 9 Units) – Allows system scalability.
Built-in Anti-Dust Kit – Protects internal components for enhanced durability.
Conformal Coating on PCB – Shields electronics from humidity and environmental factors.
Built-in BMS & SOC-Based Battery Control – Optimizes battery performance and lifespan.

The Inverex Veyron II 6KW is an ideal hybrid inverter for users looking for a smart, scalable, and efficient solar energy solution with grid-tie capability, high solar input, and flexible battery options.

Specifications

Model	VEYRON II 6000-48
Rated Power	6000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	170-280 VAC (For Personal Computers)
Overload capacity	“5s@≥150% load; 10s@110%~150% load;
Efficiency (Peak)	90%
Transfer Time	“10 ms (For Personal Computers) 20 ms (For Home Appliances)”
Waveform	Pure sine wave
Dual Outputs	Yes
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum PV Array Power	6500W
MPP Range @ Operating Voltage	120~430 VDC
Maximum Solar Charge Current	120A
Maximum AC Charge Current	120A
Maximum Charge Current	120A
Maximum Solar Input Current	27A
PHYSICAL
Dimension, DXWXH (mm)	140 x 295 x468
Net Weight (kgs)	11.0
Communication Interface	RS485, RS232, Optional for Wi-Fi (Built-in BMS)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
