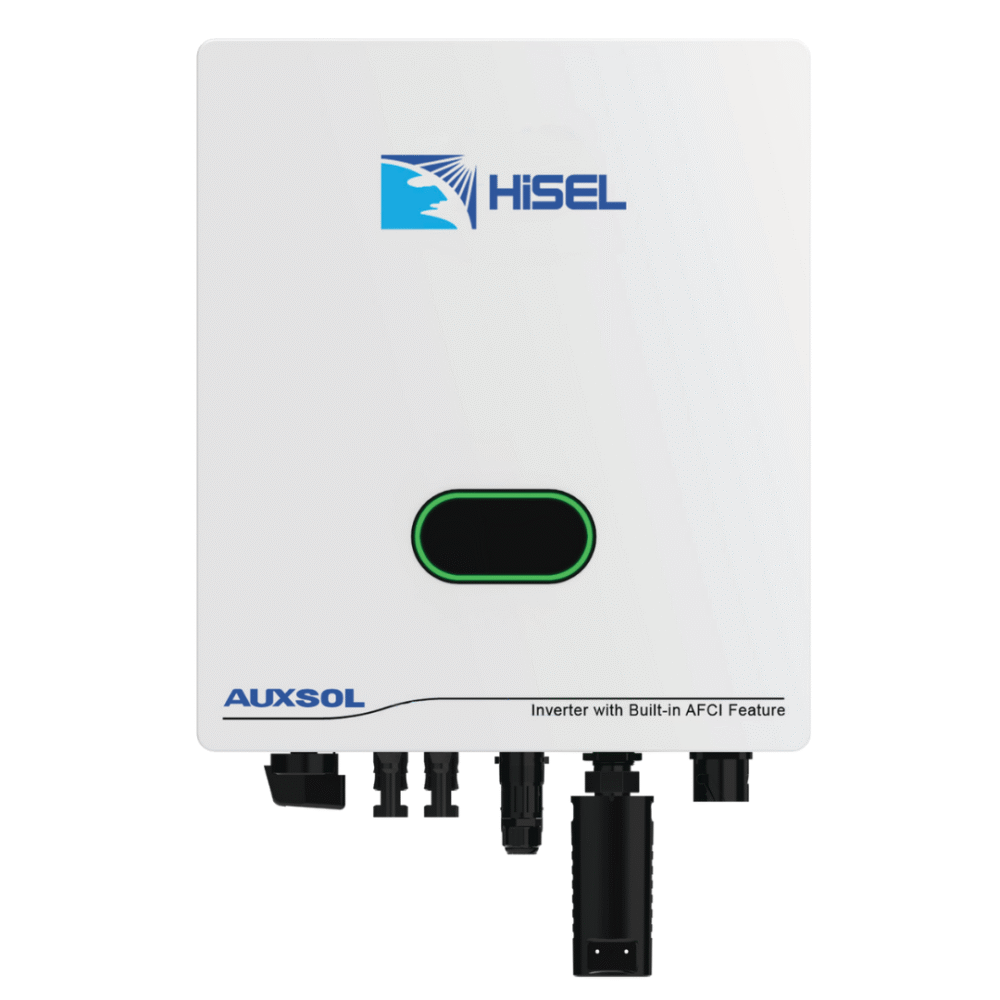

Hisel ASN-10TL-G2 10KW – PV 15KW Three Phase On-Grid Solar Inverter
₨ 160,000
ASN-10TL-G2 10KW Solar Inverter – High Efficiency & Smart Monitoring
The ASN-10TL-G2 is a high-performance grid-tied solar inverter designed to deliver up to 10KW output power. Equipped with advanced MPPT technology, it ensures maximum energy extraction from solar panels. With an impressive 98.60% max efficiency and 99.80% MPPT efficiency, this inverter is an excellent choice for both industrial and residential applications. RS485, Wi-Fi, and 4G communication options allow for remote monitoring and easy system management.
Key Features
- High Efficiency Performance – Delivers 98.60% max efficiency and 99.80% MPPT efficiency for maximum solar power utilization.
- Dual MPPT System – Features 140-1000V MPPT voltage range with 2 independent MPPT trackers, optimizing power output from multiple solar panel strings.
- Wide Grid Compatibility – Supports 220V / 380V / 230V / 400V (3-phase) grid voltage, making it adaptable for various regional standards.
- Smart Communication & Monitoring – Integrated RS485, Bluetooth, and optional WIFI & 4G connectivity for real-time monitoring and remote access.
- Robust Protection System – Equipped with DC reverse-polarity, short-circuit, surge protection, temperature protection, and anti-islanding protection to ensure safe operation.
- Natural Cooling Design – Features a transformer less structure with natural cooling to prevent overheating, ensuring long-term reliability.
- IP66 Waterproof Rating – Built to withstand harsh outdoor conditions, providing reliable performance in all environments.
- Anti-Backflow & AFCI Protection – Includes anti-backflow prevention and arc-fault circuit protection to maintain grid stability and enhance electrical safety.
ASN-10TL-G2 Solar Inverter – Technical Specifications
| Category | Specification |
|---|---|
| Input DC | |
| Max. Input Power | 15KW |
| Max. Input Voltage | 1100V |
| Rated Voltage | 620V |
| Start-up Voltage | 140V |
| MPPT Voltage Range | 140 – 1000V |
| Max. Input Current | 20A / 20A |
| Max. Short Circuit Current | 25A / 25A |
| MPPT Number | 2 |
| Max. Input Strings Number | 2 |
| Output AC | |
| Rated Output Power | 10KW |
| Max. Output Power | 11KW |
| Rated Grid Voltage | 220V / 380V / 230V / 400V (3/N/PE) |
| Grid Voltage Range | 170V – 280V (Phase voltage), 320V – 480V (Line voltage) |
| Rated Grid Frequency | 50Hz / 60Hz |
| Rated Grid Output Current | 14.4A |
| Max. Output Current | 15.9A |
| Power Factor | 1 (0.8 leading, 0.8 lagging) |
| THD (Total Harmonic Distortion) | <3% |
| Efficiency | |
| Max. Efficiency | 98.60% |
| EU Efficiency | 98.30% |
| MPPT Efficiency | 99.80% |
| Protection | |
| Integrated DC Switch | Yes |
| DC Reverse-Polarity Protection | Yes |
| Anti-Islanding Protection | Yes |
| Short Circuit Protection | Yes |
| Output Over Current Protection | Yes |
| DC Surge Protection | Type II |
| AC Surge Protection | Type II |
| Insulation Impedance Detection | Yes |
| Ground Fault Monitoring | Yes |
| Residual Leakage Current Detection | Yes |
| Temperature Protection | Yes |
| AC Over Voltage Protection | Yes |
| DC Over Current Protection | Yes |
| Integrated AFCI (DC Arc-Fault Circuit Protection) | Yes |
| Anti-Backflow Protection | Yes |
| Strings Monitoring | Yes |
| I/V Curve Scanning | Optional |
| General Data | |
| Dimensions (WHD) | 339 × 394 × 175.5mm |
| Weight | 13Kg |
| Self-Consumption (Night) | <1W |
| Operating Temperature Range | -30°C to +60°C |
| Cooling Concept | Natural Cooling |
| Max. Operation Altitude | 4000m (Derating above 3000m) |
| Relative Humidity | 0-100% |
| Ingress Protection | IP66 |
| Topology Structure | Transformer less |
| Grid Connection Standard | IEC/EN 62109-1/2, EN IEC 61000-6-1/2/3/4, EN IEC 61000-3-11, EN 61000-3-12 |
| Safety/EMC Standard | NB/T32004, EN 50549-1, CGC/GF 035-2013, VDE-AR-N 4105 |
| Type of DC Terminal | MC4 Connector |
| Type of AC Terminal | Quick Connection Plug |
| Display & Communication | |
| Display | LED + Bluetooth + APP |
| Communication Interface | RS485, Optional: WIFI/4G |
The ASN-10TL-G2 is a smart, efficient, and reliable inverter, making it an ideal solution for residential and commercial solar power systems, ensuring long-term durability with advanced monitoring capabilities.
