DJDC Dongjin 48V 100Ah Lithium-ion LiFePO₄ Battery – 5.12kWh – IP32 – Wall-Mounted
DJDC Dongjin 48V 100Ah Lithium-ion LiFePO₄ Battery – 5.12kWh – IP32 – Wall-Mounted
DJDC Dongjin 48V 100Ah Lithium-ion LiFePO₄ Battery – 5.12kWh – IP32 – Wall-Mounted - Image 2
DJDC Dongjin 48V 100Ah Lithium-ion LiFePO₄ Battery – 5.12kWh – IP32 – Wall-Mounted - Image 3
DJDC Dongjin 48V 100Ah Lithium-ion LiFePO₄ Battery – 5.12kWh – IP32 – Wall-Mounted - Image 4
DJDC Dongjin 48V 100Ah Lithium-ion LiFePO₄ Battery – 5.12kWh – IP32 – Wall-Mounted - Image 5
DJDC Dongjin 48V 100Ah Lithium-ion LiFePO₄ Battery – 5.12kWh – IP32 – Wall-Mounted - Image 6
DJDC Dongjin 48V 100Ah Lithium-ion LiFePO₄ Battery – 5.12kWh – IP32 – Wall-Mounted - Image 7

DJDC Dongjin 48V 100Ah Lithium-ion LiFePO₄ Battery – 5.12kWh – IP32 – Wall-Mounted

₨ 238,000

Category

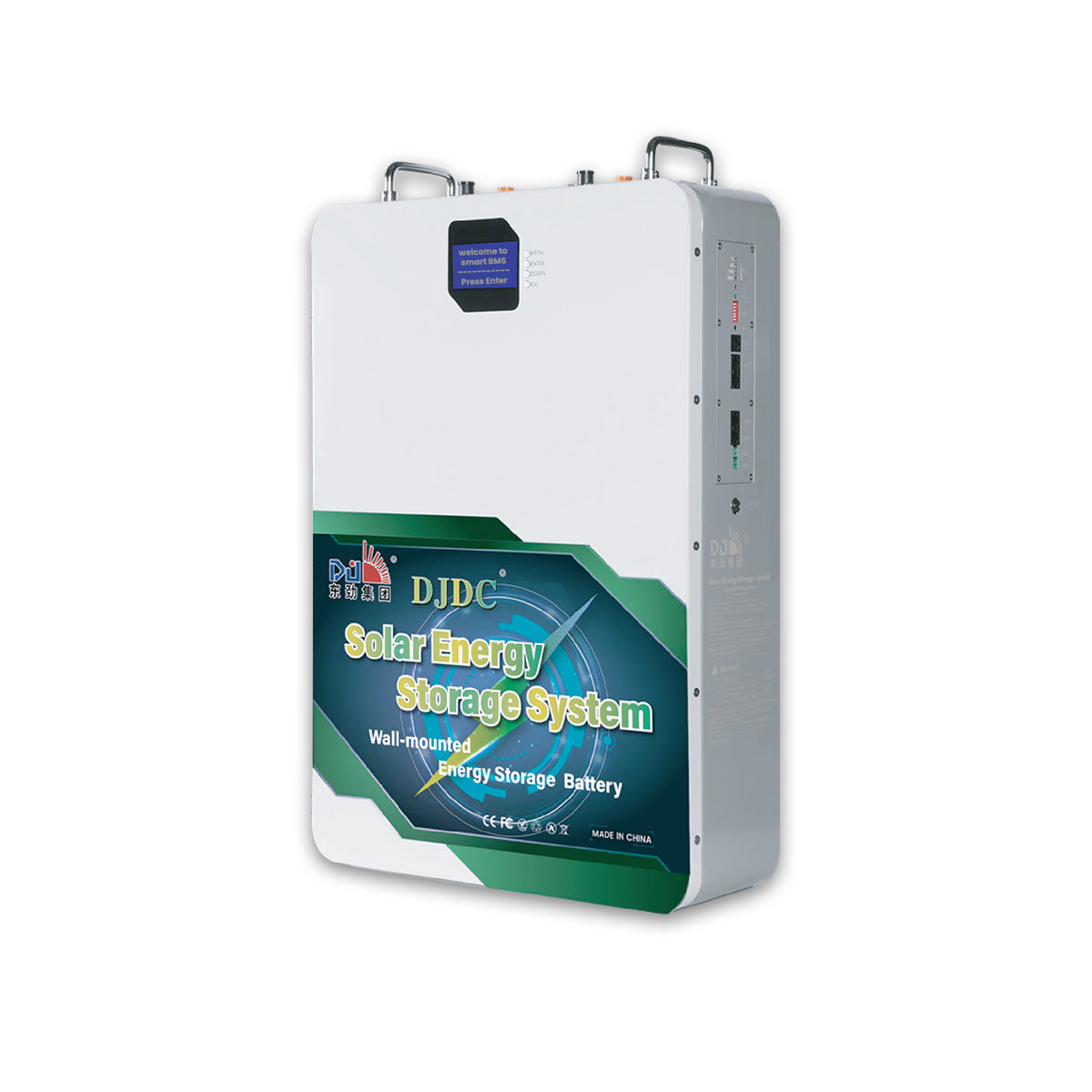

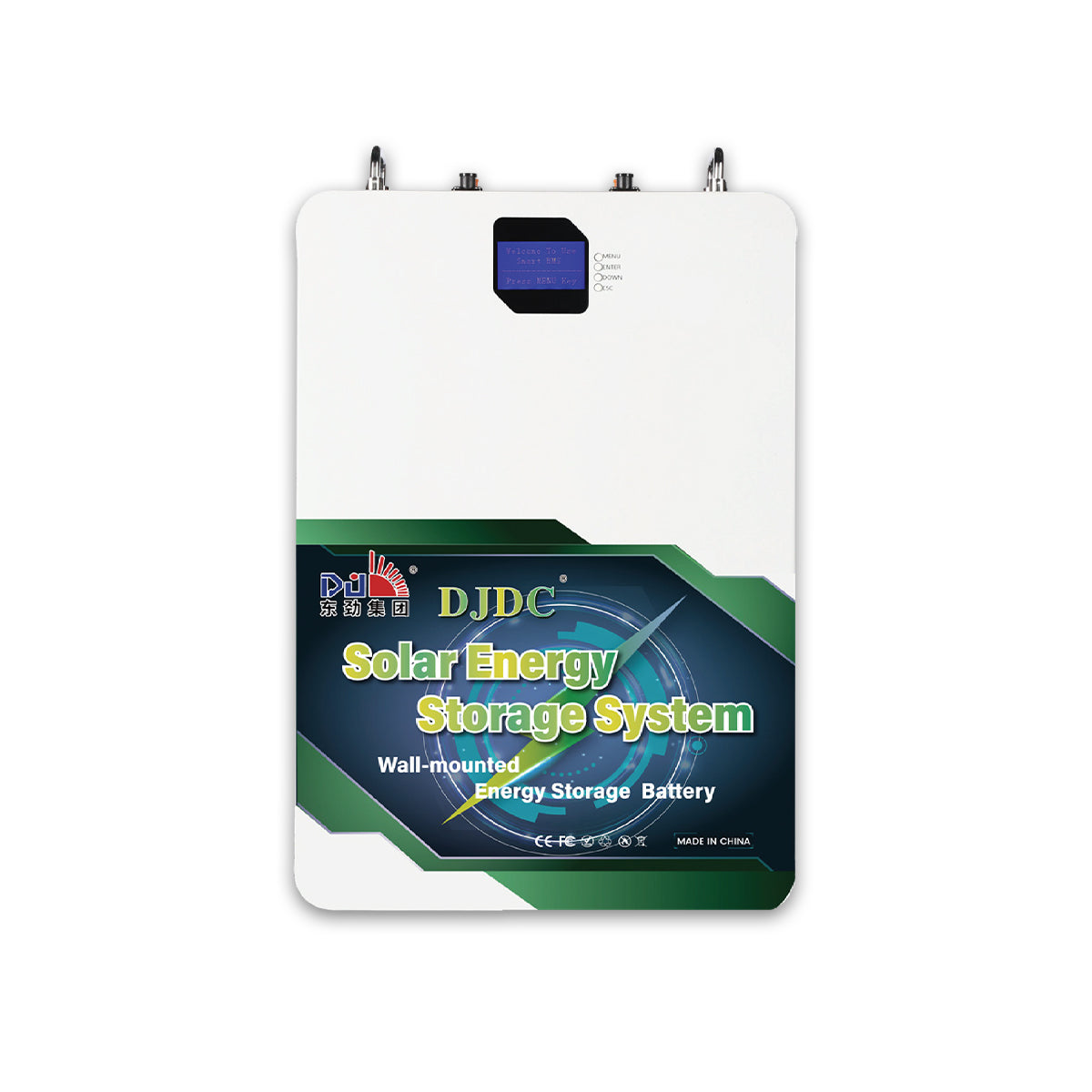

Upgrade your solar energy system with the DJDC 48V 100Ah Wall-Mounted Lithium-ion LiFePO₄ Battery, engineered for performance, reliability, and long service life. With a high energy capacity of 5.12kWh and integrated Smart BMS (Battery Management System), this compact and durable unit is perfect for residential and small commercial solar energy storage applications.

Key Features:

  • High Capacity: 100Ah @ 51.2V, delivering 5.12kWh of usable energy.
  • Smart BMS: Advanced protection and real-time monitoring for safe and efficient operation.
  • Long Lifespan: Up to 6000 cycles at 80% depth of discharge (DoD).
  • Reliable Communications: RS232, RS485, and CAN interface compatibility.
  • Space-Saving Design: Slim, wall-mounted unit with an IP32 rating for indoor installations.
  • Safe Chemistry: Lithium Iron Phosphate (LiFePO₄) technology ensures thermal stability and safety.

Ideal for backup power, off-grid systems, and energy optimization in solar installations.

Specification DJDC 48V 100Ah-WM
Battery Type LiFePO4
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Energy 5120Wh
Communication RS232/RS485/CAN
Resistance ≤10mΩ
Cycle Life 6000 cycles @ 80%
Protection BMS
IP Degree IP32
Parallel Communication Up to 8 batteries
Full Charge Voltage 58.4V
Full Discharge Voltage 40V
Rated Discharging Current 20A
Max. Discharging Current 100A
Charge Voltage 58.4V
Charge Current 40A
Recommended Charging/Discharging Current 50A
Standard Charge Method 0.2C CC to 58.4V, CV till <0.05C
Display LCD
Charge Temperature Range 0-45°C
Discharge Temperature Range -20°C to 60°C

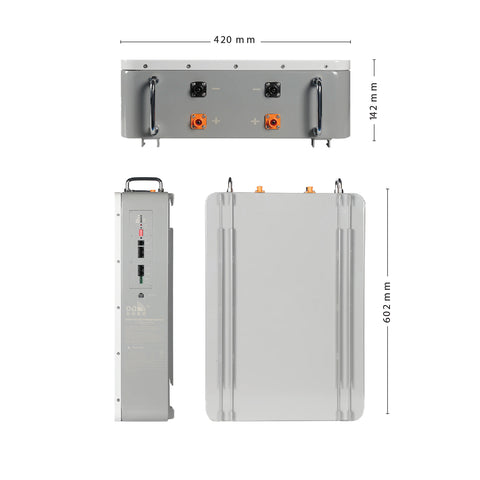

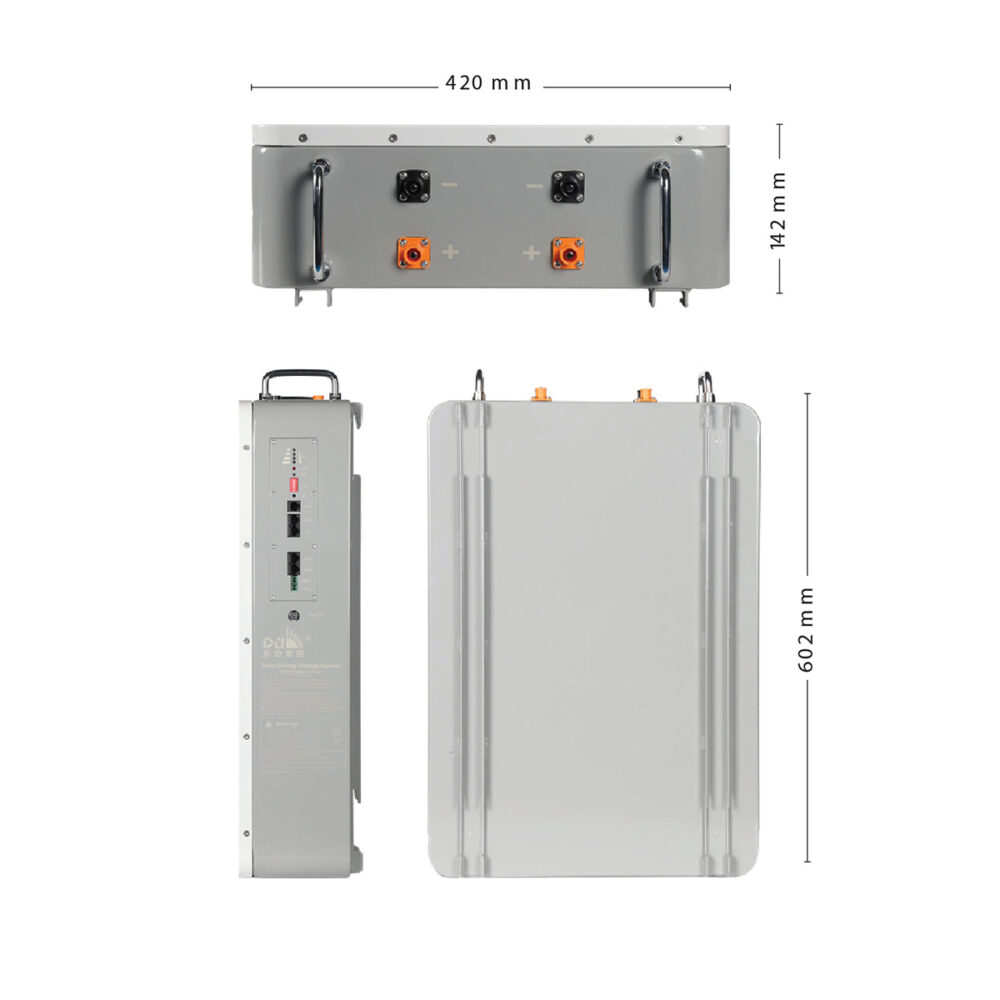

Dimensions (DxWxH) 602 x 420 x 142 mm
Net Weight 45 kg
