DJDC Dongjin 25.6V 100Ah Lithium-Ion LiFePO4 Wall-Mounted Battery with WiFi & Bluetooth 2.56kw- IP32
₨ 180,000

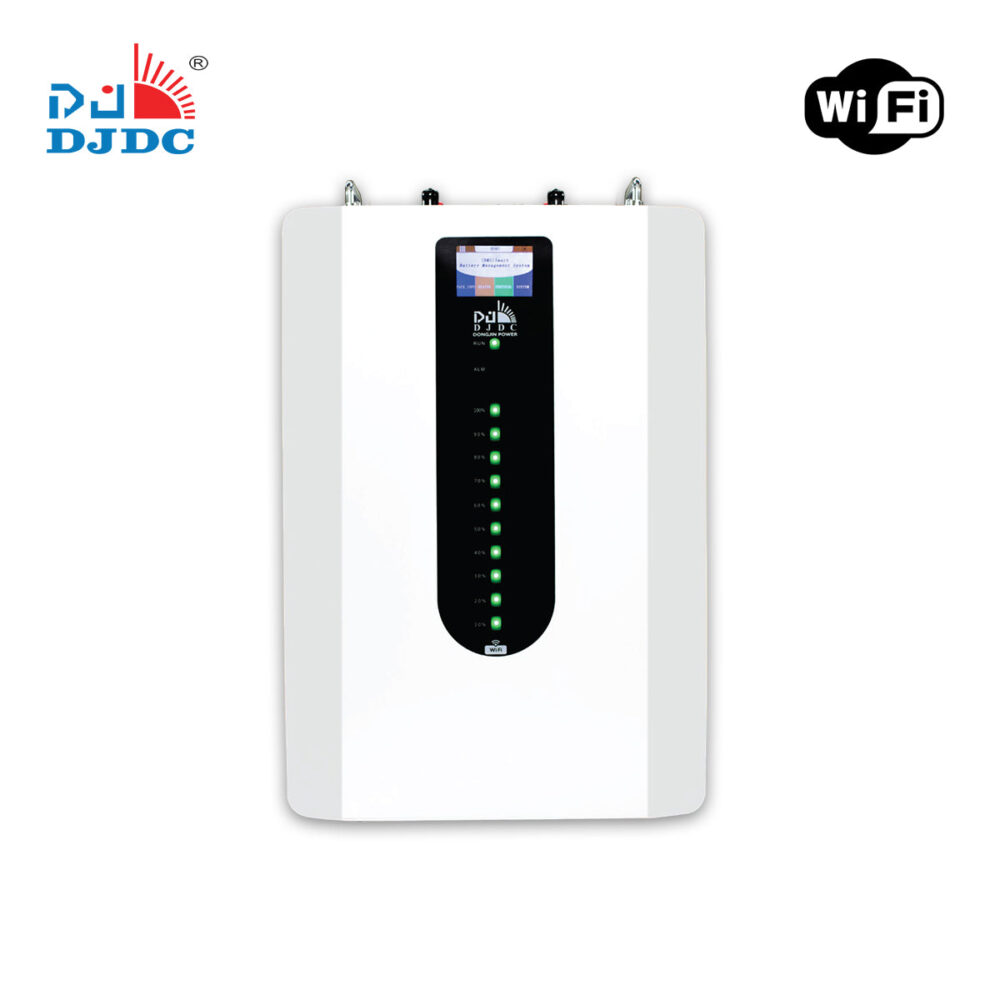

Power your solar energy system with the Dongjin Wall-Mounted 25.6V 100Ah LiFePO4 Battery, designed for efficiency and durability. This compact, wall-mounted energy storage system delivers 2560Wh of reliable power, perfect for residential or off-grid applications. With a high cycle life of 6000 cycles at 80% capacity, this low-maintenance battery ensures long-term savings. Equipped with a smart BMS, it offers seamless communication via WiFi, Bluetooth, RS232, RS485, and CAN ports, and features a user-friendly touch LCD display. Built-in protections against over-charge, over-discharge, and over-temperature, combined with fast charging and extreme heat tolerance (up to +60°C), make this battery a versatile choice for solar hybrid inverters. Upgrade your energy storage with Dongjin’s cutting-edge technology today!
Donwload Datasheet
- Space-Saving Design: Wall-mounted for easy installation and minimal footprint.
- High Cycle Life: 6000 cycles at 80% capacity for cost-effective ownership.
- Smart Connectivity: WiFi, Bluetooth, and multiple communication ports for seamless integration.
- Fast Charging: Supports rapid charge/discharge for solar applications.
- Extreme Heat Tolerance: Operates reliably up to +60°C.
Datasheet
| Specification | Value |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Energy | 2560Wh |
| Cell Quantity | 8 Cells |
| Internal Resistance | ≤10mΩ |
| Parallel Communication Quantity | 10 Batteries |
| Full Charge Voltage | 29.2V |
| Full Discharge Voltage | 24V |
| Charging Passive Current Limit | 30Ah |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Communication | WiFi, Bluetooth, RS232, RS485, CAN |
| Display | Touch Screen LCD |
| Cycle Life | 6000 cycles @ 80% |
| Protection | BMS (Over-Charge, Over-Discharge, Over-Temperature) |
| IP Degree | IP32 |
| Standard Charge Method | 0.2C CC to FC, CV till current <0.05C |
| Storage Temperature | 0-40°C |
| Charge Temperature Range | 0-45°C |
| Discharge Temperature Range | -20°C to 60°C |

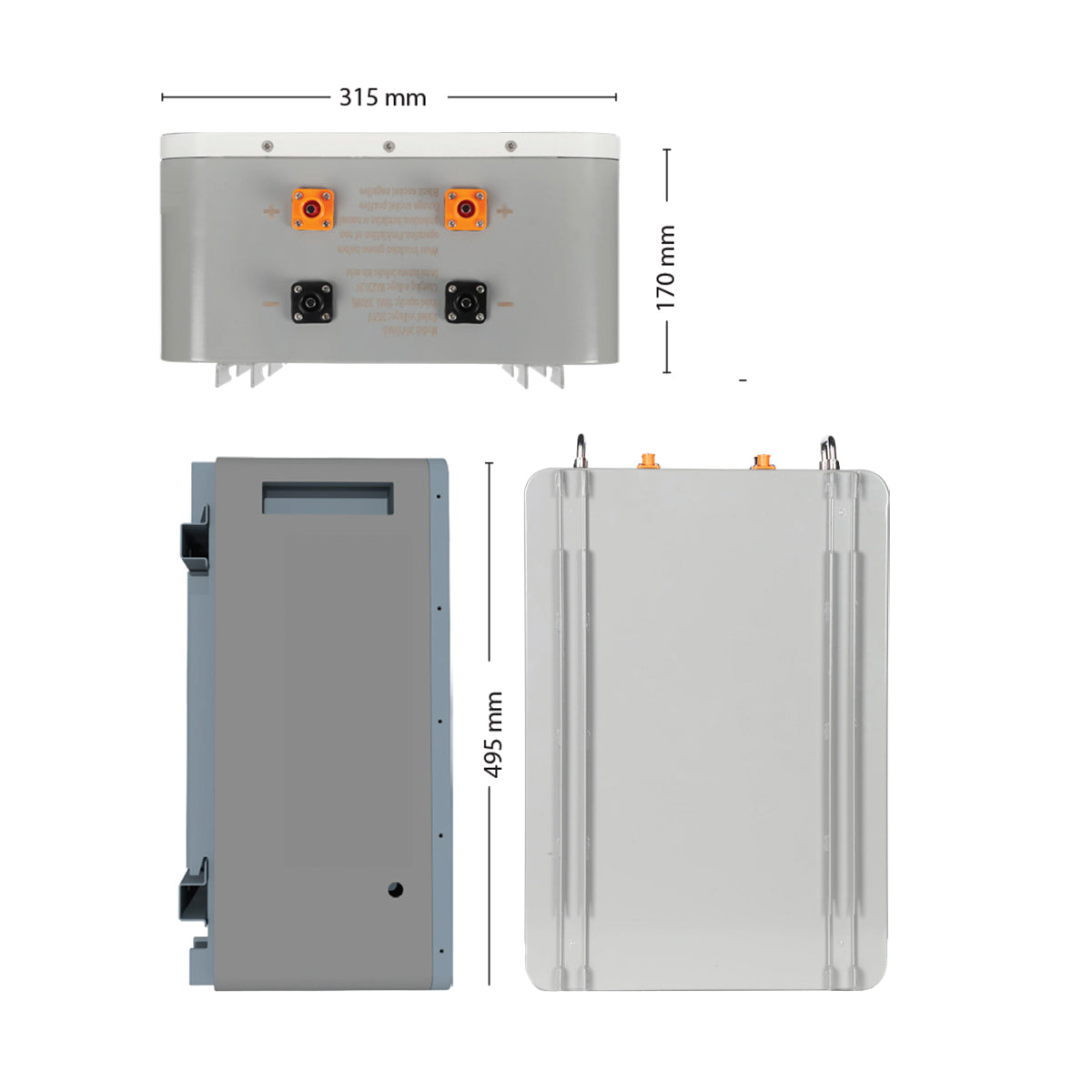

| Dimensions (DxWxH) | 495 x 315 x 170 mm |
| Net Weight | 27 kg |
