Efficient 3kW BB-SF3000TL On-Grid Solar Inverter with 97.8% peak efficiency. Compatible with PV systems up to 3450W. Wide MPPT voltage range (210–500V), IP65-rated, ideal for residential or commercial rooftop installations.

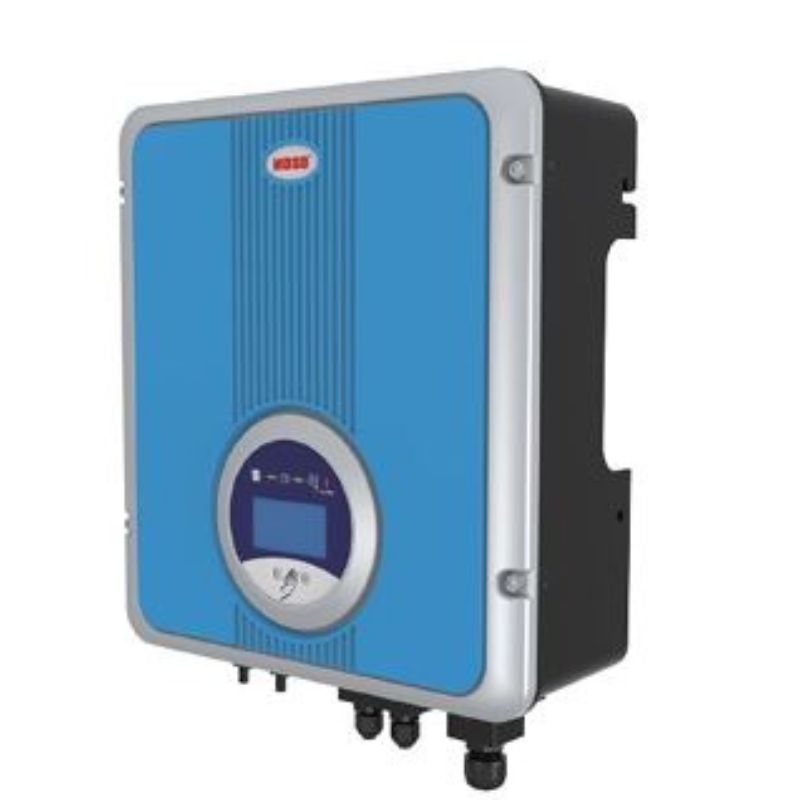

The BB-SF5000TL On-Grid Solar Inverter is a high-efficiency, transformerless inverter engineered for modern solar energy systems. Designed with patented topology, it reaches peak efficiency of 98.1%, making it ideal for maximizing your energy output while minimizing losses. With a dual MPPT input and wide voltage range (175–500V), it provides ultimate flexibility in solar panel configurations.
Built for both indoor and outdoor use, the inverter is IP65-rated, ensuring protection against dust, water, and harsh environmental conditions. Its compact structure and sound-controlled operation make it easy to install and maintain. With Wi-Fi and RS485 communication interfaces, remote monitoring and real-time system performance tracking become seamless.
The BB-SF5000TL complies with multiple global safety standards, including VDE0126-1-1, EN62109, AS/NZS 3100, and more, ensuring reliable performance across various regions.
Specification |
Details |
|---|---|
| Product Title | BB-SF5000TL Solar Inverter |
| Category | On-Grid |
| Model Name | SF5000TL |
| Inverter Type | Transformerless On-Grid |
| PV Capacity | 5200W |
| MPPT Voltage Range | 175–500V / 360V (Nominal) |
| Maximum Input Current | 15A / 15A |
| Number of MPPT Inputs | 2 |
| Efficiency (Peak) | 98.1% |
| Operating Temperature | -25℃ to +60℃ |
| Protection Rating | IP65 |
| Cooling Method | Natural Convection |
| Communication Interface | RS485 / Wi-Fi (optional) |
| LCD Display | Yes (Multilingual) |
| Dimensions (D × W × H) | 386 × 420 × 159 mm |
| Net Weight | 17.5 kg |

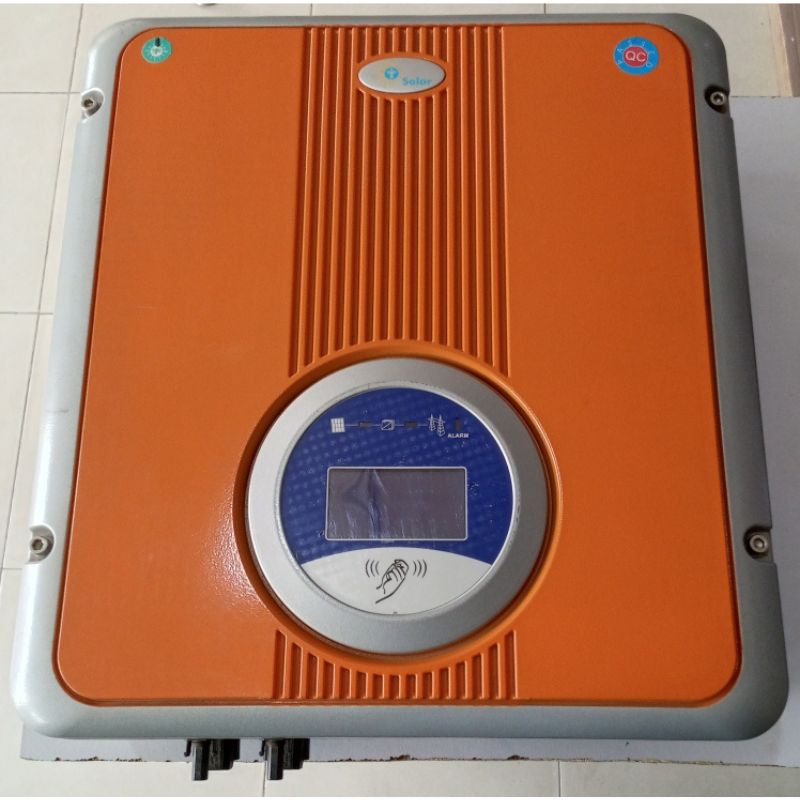

| Color Options | Blue, Orange (available) |
| Installation | Indoor & Outdoor (Wall-Mounted) |
| Certifications | VDE0126-1-1, EN62109-1/2, AS/NZS 3100, AS4777.2/3, G83/2, G59/2, VDE-AR-N-4105, CQC, C10/C11:2012 |
